Huawei CloudEngine 8851 (CE8851-32CQ8DQ-P)

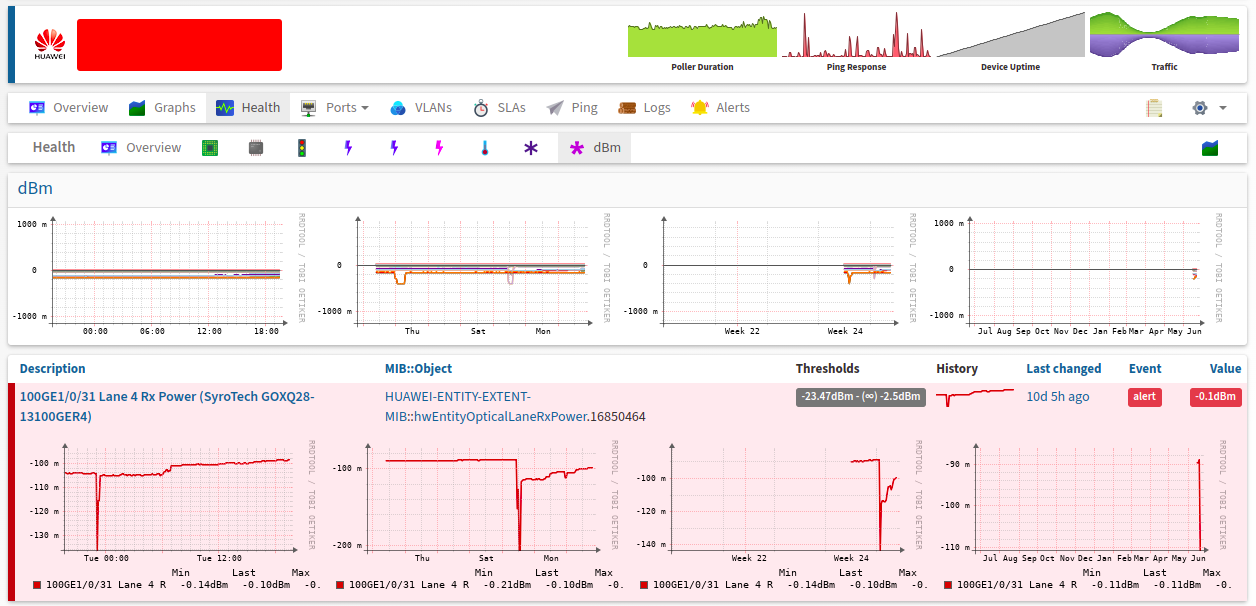

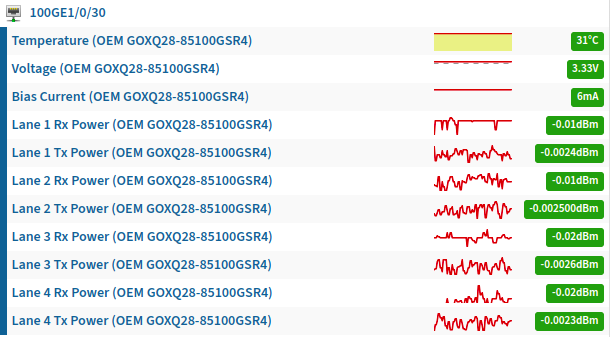

Mike Stupalov added a comment - 2022/06/21 03:46 PM Ok, I found trouble.. RX/TX power for multiline sensors reported with incorrect scale (1 instead 0.01): hwEntityOpticalRxPower.16850463 = -121 hwEntityOpticalRxHighThreshold.16850463 = 400 hwEntityOpticalRxHighWarnThreshold.16850463 = No Such Object available on this agent at this OID hwEntityOpticalRxLowThreshold.16850463 = -1801 hwEntityOpticalRxLowWarnThreshold.16850463 = No Such Object available on this agent at this OID hwEntityOpticalLaneRxPower.16850463 = -1.21,-1.51,-1.83,-2.18 hwEntityOpticalTxPower.16850463 = -25 hwEntityOpticalTxHighThreshold.16850463 = 400 hwEntityOpticalTxHighWarnThreshold.16850463 = No Such Object available on this agent at this OID hwEntityOpticalTxLowThreshold.16850463 = -1060 hwEntityOpticalTxLowWarnThreshold.16850463 = No Such Object available on this agent at this OID hwEntityOpticalLaneTxPower.16850463 = -0.25,-0.26,-0.26,-0.23 I added hack for detect correct scale in r12164. NOTE. For use changes immediately you need switch to rolling updates and rediscover device: https://docs.observium.org/updating/#switch-between-rolling-and-stable-trains

Yavor Marinov added a comment - 2022/06/21 03:08 PM - edited Hey Mike,   from switch side this is the output   <vsb5-r1-h-ce8851-core>dis int 100GE 1 / 0 / 31 transceiver v100GE1/ 0 / 31 transceiver information: ------------------------------------------------------------------- Common information: Transceiver Type :100GBASE_ER4 Connector Type :LC Wavelength (nm) : 1310 Transfer Distance (m) : 40000 (9um/125um SMF) Digital Diagnostic Monitoring :YES Vendor Name :SyroTech Vendor Part Number :GOXQ28-13100GER4 Ordering Name : ------------------------------------------------------------------- Manufacture information: Manu. Serial Number :SY2202-FPC00040 Manufacturing Date : 2022 - 2 - 14 Vendor Name :SyroTech ------------------------------------------------------------------- Alarm information: Non-Huawei-certified transceiver ------------------------------------------------------------------- Warning information: ------------------------------------------------------------------- Diagnostic information: Temperature (Celsius) : 30.89 Voltage (V) : 3.33 Bias Current (mA) : 64.98 | 69.98 (Lane0|Lane1) 64.98 | 64.98 (Lane2|Lane3) Bias High Threshold (mA) : 100.00 Bias Low Threshold (mA) : 25.00 Current RX Power (dBm) :- 10.39 |- 9.81 (Lane0|Lane1) - 9.53 |- 10.00 (Lane2|Lane3) Default RX Power High Threshold (dBm) :- 2.50 Default RX Power Low Threshold (dBm) :- 23.47 Current TX Power (dBm) : 2.34 | 2.29 (Lane0|Lane1) 3.41 | 2.66 (Lane2|Lane3) Default TX Power High Threshold (dBm) : 7.50     Here is the following information: Screenshot of a wrong information for a port Meanwhile there are ports on the same switch are displaying properly Overview of graphs of the failed port

Mike Stupalov added a comment - 2022/06/21 02:31 PM Please show which exactly sensors report incorrect Power (screenshots). And show correct values from device Cli.

Observium Bot added a comment - 2022/06/21 01:46 PM General questions and device support can be discussed in our Discord channel, click here to join . Please make and attach additional information about the device: full snmp dump from device: snmpwalk -v2c -c <community> -t 3 -Cc --hexOutputLength=0 -ObentxU <hostname> .1 > myagent.snmpwalk snmpwalk -v2c -c <community> -t 3 -Cc --hexOutputLength=0 -ObentxU <hostname> .1.3.6.1.4.1 >> myagent.snmpwalk If device not support SNMP version 2c, replace -v2c with -v1. If you have problems with discovery or poller processes, please do and attach these debugs: ./discovery.php -d -h <device> ./poller.php -d -h <device> additionally attach device and/or vendor specific MIB files This comment is added automatically.
