Generex UPS Adapter 1.86.30 lost real-time information table

Details

    • Bug
    • Resolution: Not A Bug
    • Trivial
    • None
    • None
    • Poller
    • Vendor/Hardware Generex Amberwave AMB ATS
      Operating system Generex UPS Adapter 1.86.30

    Description

      Hi Observium Team,



      After updating Observium today , we have faced issue that left status bar with Volts , Ampere, Freqeuncy etc. is gone.

      What type of information is necessary to provide to fix this issue?



      Attachments

        Activity

          [OBS-3797] Generex UPS Adapter 1.86.30 lost real-time information table

          DB schema was not updated (resolved in discord discussion).

          landy Mike Stupalov added a comment - DB schema was not updated (resolved in discord discussion).
          landy Mike Stupalov added a comment - - edited

          I propose to find for the problem together through discussion on Discord Channel: Observium

          landy Mike Stupalov added a comment - - edited I propose to find for the problem together through discussion on Discord Channel: Observium

          Ignore this message (about not found), mib still defined for os.
          See my previous message about walk from device.

          Also probably lost communication between UPS and Generex module.

          landy Mike Stupalov added a comment - Ignore this message (about not found), mib still defined for os. See my previous message about walk from device. Also probably lost communication between UPS and Generex module.

          Checked again, this agent not return any numeric data (except model/version).
          This is full walk of UPS-MIB from your dump:

          UPS-MIB::upsIdentManufacturer.0 = STRING: UPS Service
          UPS-MIB::upsIdentModel.0 = STRING: Amberwave AMB ATS
          UPS-MIB::upsIdentUPSSoftwareVersion.0 = STRING: n/a
          UPS-MIB::upsIdentAgentSoftwareVersion.0 = STRING: CS141-SNMP V1.86.30 191203
          UPS-MIB::upsAlarmsPresent.0 = Gauge32: 0
          UPS-MIB::upsObjects.13.1.0 = INTEGER: 1
          UPS-MIB::upsObjects.13.2.0 = INTEGER: 0
          UPS-MIB::upsObjects.13.3.0 = INTEGER: 1
          UPS-MIB::upsObjects.13.4.0 = INTEGER: 1
          UPS-MIB::upsObjects.13.6.0 = INTEGER: 1


          Than answer same, something changed on device.

          landy Mike Stupalov added a comment - Checked again, this agent not return any numeric data (except model/version). This is full walk of UPS-MIB from your dump: UPS-MIB::upsIdentManufacturer.0 = STRING: UPS Service UPS-MIB::upsIdentModel.0 = STRING: Amberwave AMB ATS UPS-MIB::upsIdentUPSSoftwareVersion.0 = STRING: n/a UPS-MIB::upsIdentAgentSoftwareVersion.0 = STRING: CS141-SNMP V1.86.30 191203 UPS-MIB::upsAlarmsPresent.0 = Gauge32: 0 UPS-MIB::upsObjects.13.1.0 = INTEGER: 1 UPS-MIB::upsObjects.13.2.0 = INTEGER: 0 UPS-MIB::upsObjects.13.3.0 = INTEGER: 1 UPS-MIB::upsObjects.13.4.0 = INTEGER: 1 UPS-MIB::upsObjects.13.6.0 = INTEGER: 1 Than answer same, something changed on device.
          idlvpfk Iv added a comment - - edited

          We havent updated any of our UPSes lately.

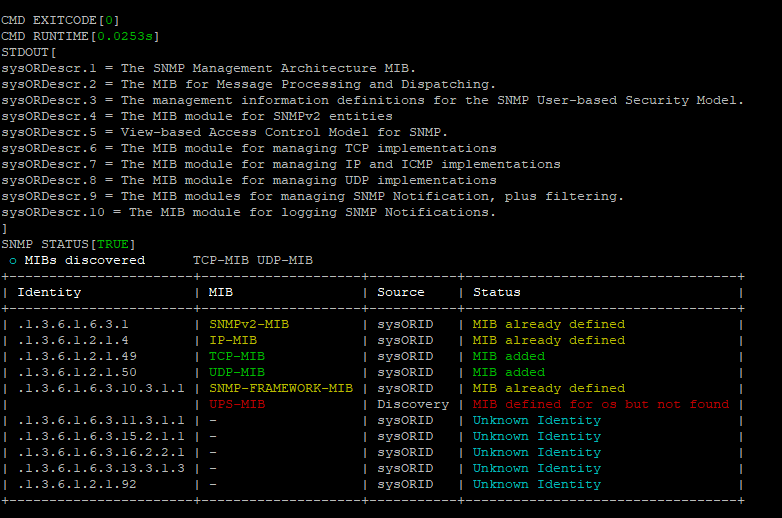

          When I run discovery -d , i can see this table:

          MIBdefined for os but not found.

           In the same time APC UPSes is reporting as usual.

          idlvpfk Iv added a comment - - edited We havent updated any of our UPSes lately. When I run discovery -d , i can see this table: MIBdefined for os but not found.  In the same time APC UPSes is reporting as usual.

          Or wait.. there is used only common UPS-MIB. Will see..

          landy Mike Stupalov added a comment - Or wait.. there is used only common UPS-MIB. Will see..

          Hrm, as I see this is not Observium issue.
          I think you also update or change something on device, because it's not return any data in SNMP ent tree.
          As in your snmpwalk:

          .1.3.6.1.4.1 = No Such Object available on this agent at this OID


          landy Mike Stupalov added a comment - Hrm, as I see this is not Observium issue. I think you also update or change something on device, because it's not return any data in SNMP ent tree. As in your snmpwalk: .1.3.6.1.4.1 = No Such Object available on this agent at this OID
          idlvpfk Iv added a comment -

          Im sorry, I marked wrong version of observium. Its not CE (community edition). It is:

          Observium 21.6.11442 (stable)

          Professional

          idlvpfk Iv added a comment - Im sorry, I marked wrong version of observium. Its not CE (community edition). It is: Observium 21.6.11442 (stable ) Professional
          idlvpfk Iv added a comment -

          Updated with attachment snmpwalk.zip

          idlvpfk Iv added a comment - Updated with attachment snmpwalk.zip

          Please make and attach additional information about the device:

          • full snmp dump from device:

            snmpwalk -v2c -c <community>  --hexOutputLength=0 -ObentxU <hostname> .1 > myagent.snmpwalk
            snmpwalk -v2c -c <community>  --hexOutputLength=0 -ObentxU <hostname> .1.3.6.1.4.1 >> myagent.snmpwalk

            If device not support SNMP version 2c, replace -v2c with -v1.

          • If you have problems with discovery or poller processes, please do and attach these debugs:

            ./discovery.php -d -h <device>
            ./poller.php -d -h <device>

          • additionally attach device and/or vendor specific MIB files

          Note, this comment is added automatically.

          bot Observium Bot added a comment - Please make and attach additional information about the device: full snmp dump from device: snmpwalk -v2c -c <community> --hexOutputLength=0 -ObentxU <hostname> .1 > myagent.snmpwalk snmpwalk -v2c -c <community> --hexOutputLength=0 -ObentxU <hostname> .1.3.6.1.4.1 >> myagent.snmpwalk If device not support SNMP version 2c, replace -v2c with -v1. If you have problems with discovery or poller processes, please do and attach these debugs: ./discovery.php -d -h <device> ./poller.php -d -h <device> additionally attach device and/or vendor specific MIB files Note, this comment is added automatically.
