[OBS-5026] huawei s2326/s2328 ddm - Observium

Details

Type: Vendor Bug
Resolution: Unresolved
Priority: Major
Fix Version/s: None
Affects Version/s: None
Component/s: Default
Labels:
None

Description

I have several Huawei switches, including models S2326, S2328, and S2320-28. I’ve observed that some of them experience SNMP polling issues unless the “sensors” module is disabled. Disabling this module improves stability during SNMP monitoring.

Upon further investigation, I found that the S2320-28 switches, running firmware versions V200R011C10SPC600 and V200R019C10SPC500, operate without any issues. However, the S2326 and S2328 models are running version V100R006C05 with patches SPH031 and SPH038. Some of these switches only respond properly to SNMP when the “sensors” module is turned off.

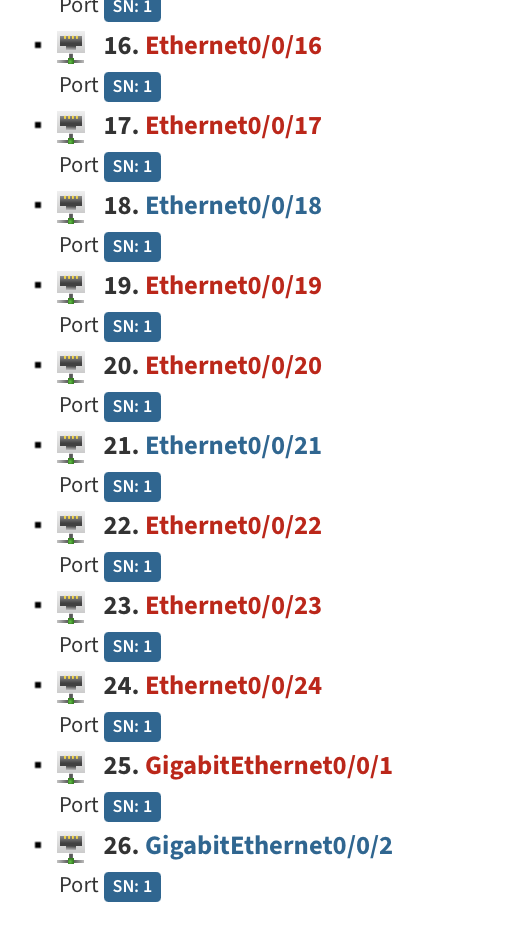

Initially, I suspected a problem with the SFP modules. But I noticed that for all affected devices, the SFP module’s serial number is shown as “1” and this same value is applied to all ports in the “Inventory” tab. Moreover, there are no threshold values (alarm or warning) for RX and TX power levels.

I’ve attached SNMP dumps from an S2328 switch that has polling issues and from an S2326 switch that works correctly with the “sensors” module enabled.

Attachments

- Sort By Name
- Sort By Date
- Ascending
- Descending
- Thumbnails
- List
- Download All

118 kB
2025/05/11 01:59 PM
S2326.snmpwalk
1.15 MB
2025/05/11 02:00 PM
s2326discovery
242 kB
2025/05/11 02:00 PM
s2326opller
360 kB
2025/05/11 02:00 PM
S2328.snmpwalk
1.04 MB
2025/05/11 02:00 PM
S2328discovery
11 kB
2025/05/11 02:00 PM
S2328poller
378 kB
2025/05/11 02:00 PM

Activity

[OBS-5026] huawei s2326/s2328 ddm

Mike Stupalov added a comment - 2025/05/12 03:07 PM

Mainly as you describe issue - it's exactly vendor firmware troubles.
Not sure what we should check for this..

What I see in your debugs:

S2328: discovery debug incomplete (snmp timeout)

S2328: poller debug many snmp timeouts, ie ( this errors related with DOM sensors):

CMD[/usr/bin/snmpget -t '2' -v2c -c *** -Pud -Ir -OQUsn -M /opt/observium/mibs/rfc:/opt/observium/mibs/net-snmp 'udp':'192.168.242.70':'161' .1.3.6.1.4.1.2011.5.25.31.1.1.1.1.11.67108873 .1.3.6.1.4.1.2011.5.25.31.1.1.1.1.13.67108873 .1.3.6.1.4.1.2011.5.25.31.1.1.3.1.5.67240078 .1.3.6.1.4.1.2011.5.25.31.1.1.3.1.5.67240142 .1.3.6.1.4.1.2011.5.25.31.1.1.3.1.5.67240206 .1.3.6.1.4.1.2011.5.25.31.1.1.3.1.6.67240078 .1.3.6.1.4.1.2011.5.25.31.1.1.3.1.6.67240142 .1.3.6.1.4.1.2011.5.25.31.1.1.3.1.6.67240206 .1.3.6.1.4.1.2011.5.25.31.1.1.3.1.7.67240078 .1.3.6.1.4.1.2011.5.25.31.1.1.3.1.7.67240142 .1.3.6.1.4.1.2011.5.25.31.1.1.3.1.7.67240206 .1.3.6.1.4.1.2011.5.25.31.1.1.3.1.8.67240078 .1.3.6.1.4.1.2011.5.25.31.1.1.3.1.8.67240142 .1.3.6.1.4.1.2011.5.25.31.1.1.3.1.8.67240206 .1.3.6.1.4.1.2011.5.25.31.1.1.3.1.9.67240078 .1.3.6.1.4.1.2011.5.25.31.1.1.3.1.9.67240142]

CMD RUNTIME[12.0435s]

STDERR[

Timeout: No Response from udp:192.168.242.70:161.

CMD[/usr/bin/snmpget -t '2' -v2c -c *** -Pud -Ir -OQUsn -M /opt/observium/mibs/rfc:/opt/observium/mibs/net-snmp 'udp':'192.168.242.70':'161' .1.3.6.1.4.1.2011.5.25.31.1.1.3.1.9.67240206]

CMD RUNTIME[12.0438s]

STDERR[

Timeout: No Response from udp:192.168.242.70:161.

S2326 discovery debug, this serial reported by device and no other information reported:

CMD[/usr/bin/snmpbulkwalk -t '2' -v2c -c *** -Pud -Ir -OQUs -m HUAWEI-ENTITY-EXTENT-MIB -M /opt/observium/mibs/rfc:/opt/observium/mibs/net-snmp:/opt/observium/mibs/huawei 'udp':'10

.90.93.22':'161' hwEntityOpticalVendorSn]

STDOUT[

hwEntityOpticalVendorSn.67223630 = 1

hwEntityOpticalVendorSn.67223694 = 1

hwEntityOpticalVendorSn.67223758 = 1

hwEntityOpticalVendorSn.67223822 = 1

hwEntityOpticalVendorSn.67223886 = 1

hwEntityOpticalVendorSn.67223950 = 1

hwEntityOpticalVendorSn.67224014 = 1

hwEntityOpticalVendorSn.67224078 = 1

hwEntityOpticalVendorSn.67224142 = 1

hwEntityOpticalVendorSn.67224206 = 1

hwEntityOpticalVendorSn.67224270 = 1

hwEntityOpticalVendorSn.67224334 = 1

hwEntityOpticalVendorSn.67224398 = 1

hwEntityOpticalVendorSn.67224462 = 1

hwEntityOpticalVendorSn.67224526 = 1

hwEntityOpticalVendorSn.67224590 = 1

hwEntityOpticalVendorSn.67224654 = 1

hwEntityOpticalVendorSn.67224718 = 1

hwEntityOpticalVendorSn.67224782 = 1

hwEntityOpticalVendorSn.67224846 = 1

hwEntityOpticalVendorSn.67224910 = 1

hwEntityOpticalVendorSn.67224974 = 1

hwEntityOpticalVendorSn.67225038 = 1

hwEntityOpticalVendorSn.67225102 = 1

hwEntityOpticalVendorSn.67240014 = 1

hwEntityOpticalVendorSn.67240078 = 1

CMD[/usr/bin/snmpbulkwalk -t '2' -v2c -c *** -Pud -Ir -OQUs -m HUAWEI-ENTITY-EXTENT-MIB -M /opt/observium/mibs/rfc:/opt/observium/mibs/net-snmp:/opt/observium/mibs/huawei 'udp':'10.90.93.22':'161' hwEntityOpticalType]

STDOUT[

hwEntityOpticalType = No Such Object available on this agent at this OID

CMD[/usr/bin/snmpbulkwalk -t '2' -v2c -c *** -Pud -Ir -OQUs -m HUAWEI-ENTITY-EXTENT-MIB -M /opt/observium/mibs/rfc:/opt/observium/mibs/net-snmp:/opt/observium/mibs/huawei 'udp':'10.90.93.22':'161' hwEntityOpticalVenderName]

STDOUT[

hwEntityOpticalVenderName = No Such Object available on this agent at this OID

CMD[/usr/bin/snmpbulkwalk -t '2' -v2c -c *** -Pud -Ir -OQUs -m HUAWEI-ENTITY-EXTENT-MIB -M /opt/observium/mibs/rfc:/opt/observium/mibs/net-snmp:/opt/observium/mibs/huawei 'udp':'10.90.93.22':'161' hwEntityOpticalVenderPn]

STDOUT[

hwEntityOpticalVenderPn = No Such Object available on this agent at this OID

CMD[/usr/bin/snmpbulkwalk -t '2' -v2c -c *** -Pud -Ir -OQUs -m HUAWEI-ENTITY-EXTENT-MIB -M /opt/observium/mibs/rfc:/opt/observium/mibs/net-snmp:/opt/observium/mibs/huawei 'udp':'10.90.93.22':'161' hwEntityOpticalTransType]

STDOUT[

hwEntityOpticalTransType = No Such Object available on this agent at this OID

S2326 poller debug: there sensors polled correctly without timeouts

Attached SNMPdumps or incomplete or not same as in poller/discovery debug, because without inventory information and without DOM sensors.

I do not know what best option for you in this case, but main is update firmwares or write to Vendor support about snmp issues.
Discovery and poller correctly collect information provided by device.

Mike Stupalov added a comment - 2025/05/12 03:07 PM Mainly as you describe issue - it's exactly vendor firmware troubles. Not sure what we should check for this.. What I see in your debugs: S2328: discovery debug incomplete (snmp timeout) S2328: poller debug many snmp timeouts, ie ( this errors related with DOM sensors): CMD[/usr/bin/snmpget -t '2' -v2c -c *** -Pud -Ir -OQUsn -M /opt/observium/mibs/rfc:/opt/observium/mibs/net-snmp 'udp':'192.168.242.70':'161' .1.3.6.1.4.1.2011.5.25.31.1.1.1.1.11.67108873 .1.3.6.1.4.1.2011.5.25.31.1.1.1.1.13.67108873 .1.3.6.1.4.1.2011.5.25.31.1.1.3.1.5.67240078 .1.3.6.1.4.1.2011.5.25.31.1.1.3.1.5.67240142 .1.3.6.1.4.1.2011.5.25.31.1.1.3.1.5.67240206 .1.3.6.1.4.1.2011.5.25.31.1.1.3.1.6.67240078 .1.3.6.1.4.1.2011.5.25.31.1.1.3.1.6.67240142 .1.3.6.1.4.1.2011.5.25.31.1.1.3.1.6.67240206 .1.3.6.1.4.1.2011.5.25.31.1.1.3.1.7.67240078 .1.3.6.1.4.1.2011.5.25.31.1.1.3.1.7.67240142 .1.3.6.1.4.1.2011.5.25.31.1.1.3.1.7.67240206 .1.3.6.1.4.1.2011.5.25.31.1.1.3.1.8.67240078 .1.3.6.1.4.1.2011.5.25.31.1.1.3.1.8.67240142 .1.3.6.1.4.1.2011.5.25.31.1.1.3.1.8.67240206 .1.3.6.1.4.1.2011.5.25.31.1.1.3.1.9.67240078 .1.3.6.1.4.1.2011.5.25.31.1.1.3.1.9.67240142] CMD RUNTIME[12.0435s] STDERR[ Timeout: No Response from udp:192.168.242.70:161. ] CMD[/usr/bin/snmpget -t '2' -v2c -c *** -Pud -Ir -OQUsn -M /opt/observium/mibs/rfc:/opt/observium/mibs/net-snmp 'udp':'192.168.242.70':'161' .1.3.6.1.4.1.2011.5.25.31.1.1.3.1.9.67240206] CMD RUNTIME[12.0438s] STDERR[ Timeout: No Response from udp:192.168.242.70:161. ] S2326 discovery debug, this serial reported by device and no other information reported: CMD[/usr/bin/snmpbulkwalk -t '2' -v2c -c *** -Pud -Ir -OQUs -m HUAWEI-ENTITY-EXTENT-MIB -M /opt/observium/mibs/rfc:/opt/observium/mibs/net-snmp:/opt/observium/mibs/huawei 'udp':'10 .90.93.22':'161' hwEntityOpticalVendorSn] STDOUT[ hwEntityOpticalVendorSn.67223630 = 1 hwEntityOpticalVendorSn.67223694 = 1 hwEntityOpticalVendorSn.67223758 = 1 hwEntityOpticalVendorSn.67223822 = 1 hwEntityOpticalVendorSn.67223886 = 1 hwEntityOpticalVendorSn.67223950 = 1 hwEntityOpticalVendorSn.67224014 = 1 hwEntityOpticalVendorSn.67224078 = 1 hwEntityOpticalVendorSn.67224142 = 1 hwEntityOpticalVendorSn.67224206 = 1 hwEntityOpticalVendorSn.67224270 = 1 hwEntityOpticalVendorSn.67224334 = 1 hwEntityOpticalVendorSn.67224398 = 1 hwEntityOpticalVendorSn.67224462 = 1 hwEntityOpticalVendorSn.67224526 = 1 hwEntityOpticalVendorSn.67224590 = 1 hwEntityOpticalVendorSn.67224654 = 1 hwEntityOpticalVendorSn.67224718 = 1 hwEntityOpticalVendorSn.67224782 = 1 hwEntityOpticalVendorSn.67224846 = 1 hwEntityOpticalVendorSn.67224910 = 1 hwEntityOpticalVendorSn.67224974 = 1 hwEntityOpticalVendorSn.67225038 = 1 hwEntityOpticalVendorSn.67225102 = 1 hwEntityOpticalVendorSn.67240014 = 1 hwEntityOpticalVendorSn.67240078 = 1 ] CMD[/usr/bin/snmpbulkwalk -t '2' -v2c -c *** -Pud -Ir -OQUs -m HUAWEI-ENTITY-EXTENT-MIB -M /opt/observium/mibs/rfc:/opt/observium/mibs/net-snmp:/opt/observium/mibs/huawei 'udp':'10.90.93.22':'161' hwEntityOpticalType] STDOUT[ hwEntityOpticalType = No Such Object available on this agent at this OID ] CMD[/usr/bin/snmpbulkwalk -t '2' -v2c -c *** -Pud -Ir -OQUs -m HUAWEI-ENTITY-EXTENT-MIB -M /opt/observium/mibs/rfc:/opt/observium/mibs/net-snmp:/opt/observium/mibs/huawei 'udp':'10.90.93.22':'161' hwEntityOpticalVenderName] STDOUT[ hwEntityOpticalVenderName = No Such Object available on this agent at this OID ] CMD[/usr/bin/snmpbulkwalk -t '2' -v2c -c *** -Pud -Ir -OQUs -m HUAWEI-ENTITY-EXTENT-MIB -M /opt/observium/mibs/rfc:/opt/observium/mibs/net-snmp:/opt/observium/mibs/huawei 'udp':'10.90.93.22':'161' hwEntityOpticalVenderPn] STDOUT[ hwEntityOpticalVenderPn = No Such Object available on this agent at this OID ] CMD[/usr/bin/snmpbulkwalk -t '2' -v2c -c *** -Pud -Ir -OQUs -m HUAWEI-ENTITY-EXTENT-MIB -M /opt/observium/mibs/rfc:/opt/observium/mibs/net-snmp:/opt/observium/mibs/huawei 'udp':'10.90.93.22':'161' hwEntityOpticalTransType] STDOUT[ hwEntityOpticalTransType = No Such Object available on this agent at this OID ] S2326 poller debug: there sensors polled correctly without timeouts Attached SNMPdumps or incomplete or not same as in poller/discovery debug, because without inventory information and without DOM sensors. I do not know what best option for you in this case, but main is update firmwares or write to Vendor support about snmp issues. Discovery and poller correctly collect information provided by device.

Observium Bot added a comment - 2025/05/11 02:00 PM

General questions and device support can be discussed in our Discord channel, click here to join.

Please make and attach additional information about the device:

full snmp dump from device:

snmpwalk -v2c -c <community> -t 3 -Cc --hexOutputLength=0 -Ih -ObentxU <hostname> .1 > myagent.snmpwalk

snmpwalk -v2c -c <community> -t 3 -Cc --hexOutputLength=0 -Ih -ObentxU <hostname> .1.3.6.1.4.1 >> myagent.snmpwalk

If device not support SNMP version 2c, replace -v2c with -v1.

If you have problems with discovery or poller processes, please do and attach these debugs:
./discovery.php -d -h <device>
./poller.php -d -h <device>

additionally attach device and/or vendor specific MIB files

This comment is added automatically.
