Description
Hello,
We are currently running version 25.2.13910 (rolling) and have encountered an issue with our BGP peers. For the majority of our peers, the prefix count is not displayed correctly—only a small number (3 out of 90) show the proper prefix information.
Initially, we suspected the issue might be related to VRF configuration, but we found that the three peers displaying correct prefix counts are also configured within VRFs.

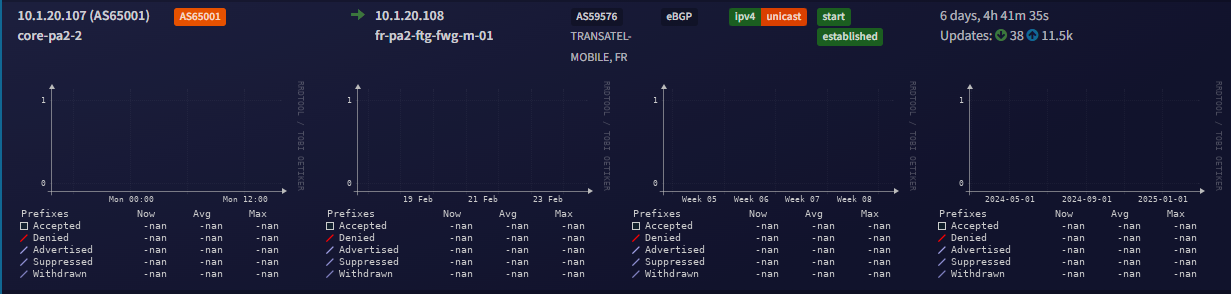

Furthermore, the issue is occurring across devices from different vendors and models, and the displayed prefix count on the affected peers is showing as “-nan” (Not a Number). We have also observed that only the newly added peers are working correctly and showing the proper prefix counts.
Could you please investigate this matter and advise on a solution?
Thank you,
Attachments
Activity
VRF related issue for AFI/SAFI counters.
Should be fixed in r13915. (rolling updates)
And in the poller I can see the insert is empty:
Peer: 10.1.20.108 (State = established, AdminStatus = start) |
[ polled 1740411589 -> period 123 ] |
RRD /data/observium/rrd/core-pa2-2/bgp-10.1.20.108.rrd already exists - no need to create.RRD CMD[update /data/observium/rrd/core-pa2-2/bgp-10.1.20.108.rrd N:11465:38:601962:674714:539017] |
RRD RUNTIME[0.0011s] |
RRD STDOUT[OK u:0.02 s:0.04 r:21.22] |
RRD_STATUS[TRUE]
|
|
|
SQL[UPDATE `bgpPeers` SET `bgpPeerInUpdates` ='38',`bgpPeerInUpdates_delta` ='0',`bgpPeerInUpdates_rate` ='0',`bgpPeerOutUpdates` ='11465',`bgpPeerOutUpdates_delta` ='0',`bgpPeerOutUpdates_rate` ='0',`bgpPeerInTotalMessages` ='674714',`bgpPeerInTotalMessages_delta` ='3',`bgpPeerInTotalMessages_rate` ='0.024390243902439',`bgpPeerOutTotalMessages` ='601962',`bgpPeerOutTotalMessages_delta` ='2',`bgpPeerOutTotalMessages_rate` ='0.016260162601626',`bgpPeerFsmEstablishedTime` ='539017',`bgpPeerInUpdateElapsedTime` ='538992',`bgpPeer_polled` ='1740411589' WHERE `bgpPeer_id` = '9761'] |
SQL RUNTIME[0.00368595s] |
|
|
SQL[SELECT * FROM `bgpPeers_cbgp` WHERE `device_id` = '6' AND `bgpPeer_id` = '9761'] |
SQL RUNTIME[0.00087786s] |
ipv4 unicast
|
Unknown AFI/SAFI index
|
|
|
SQL[UPDATE `bgpPeers_cbgp` SET `AcceptedPrefixes` ='',`DeniedPrefixes` ='',`PrefixAdminLimit` ='',`PrefixThreshold` ='',`PrefixClearThreshold` ='',`AdvertisedPrefixes` ='',`SuppressedPrefixes` ='',`WithdrawnPrefixes` ='' WHERE `cbgp_id` = '11360'] |
SQL RUNTIME[0.00073314s] |
RRD /data/observium/rrd/core-pa2-2/cbgp-10.1.20.108.ipv4.unicast.rrd already exists - no need to create. |
|
|
RRD CMD[update /data/observium/rrd/core-pa2-2/cbgp-10.1.20.108.ipv4.unicast.rrd N:U:U:U:U:U] |
RRD RUNTIME[0.0011s] |
RRD STDOUT[OK u:0.02 s:0.04 r:21.23] |
RRD_STATUS[TRUE]
|
But the number of prefixes is correctly collected from the device:
CMD[/usr/bin/snmpbulkwalk -v3 -l 'authPriv' -n '' -x *** -X *** -a *** -A *** -u *** -Pud -OQUsb -m ARISTA-BGP4V2-MIB -M /opt/observium/mibs/rfc:/opt/observium/mibs/net-snmp:/opt/observium/mibs/arista 'udp':'core-pa2-2':'161' aristaBgp4V2PrefixInPrefixesAccepted]CMD EXITCODE[0] |
CMD RUNTIME[0.0249s] |
STDOUT[
|
aristaBgp4V2PrefixInPrefixesAccepted.1.1.4.10.1.3.187.1.1 = 155 |
aristaBgp4V2PrefixInPrefixesAccepted.1.1.4.10.1.3.188.1.1 = 154 |
aristaBgp4V2PrefixInPrefixesAccepted.1.1.4.10.1.20.91.1.1 = 1 |
aristaBgp4V2PrefixInPrefixesAccepted.1.1.4.10.1.20.108.1.1 = 4 |
aristaBgp4V2PrefixInPrefixesAccepted.1.1.4.10.1.27.201.1.1 = 0 |
aristaBgp4V2PrefixInPrefixesAccepted.1.1.4.10.1.27.203.1.1 = 155 |
aristaBgp4V2PrefixInPrefixesAccepted.1.1.4.10.1.27.204.1.1 = 154 |
aristaBgp4V2PrefixInPrefixesAccepted.1.1.4.10.1.127.9.1.1 = 77 |
aristaBgp4V2PrefixInPrefixesAccepted.1.1.4.10.4.11.10.1.1 = 11 |
aristaBgp4V2PrefixInPrefixesAccepted.1.1.4.10.4.11.22.1.1 = 11 |
aristaBgp4V2PrefixInPrefixesAccepted.1.1.4.10.4.13.10.1.1 = 143 |
aristaBgp4V2PrefixInPrefixesAccepted.1.1.4.10.4.13.22.1.1 = 143 |
aristaBgp4V2PrefixInPrefixesAccepted.1.1.4.10.250.16.123.1.1 = 45 |
aristaBgp4V2PrefixInPrefixesAccepted.1.1.4.10.250.16.163.1.1 = 13 |
aristaBgp4V2PrefixInPrefixesAccepted.1.1.4.10.250.99.33.1.1 = 81 |
aristaBgp4V2PrefixInPrefixesAccepted.1.1.4.10.250.99.34.1.1 = 80 |
aristaBgp4V2PrefixInPrefixesAccepted.1.1.4.10.255.16.123.1.1 = 55 |
aristaBgp4V2PrefixInPrefixesAccepted.1.1.4.10.255.16.163.1.1 = 13 |
Hi Mike, sry for the delay.
For me the problem is after some upgrade anything it's wrong with the DB.... The problem it's present over 3 different vendors (Juniper, Cisco, Arista) and in different hardware and version.

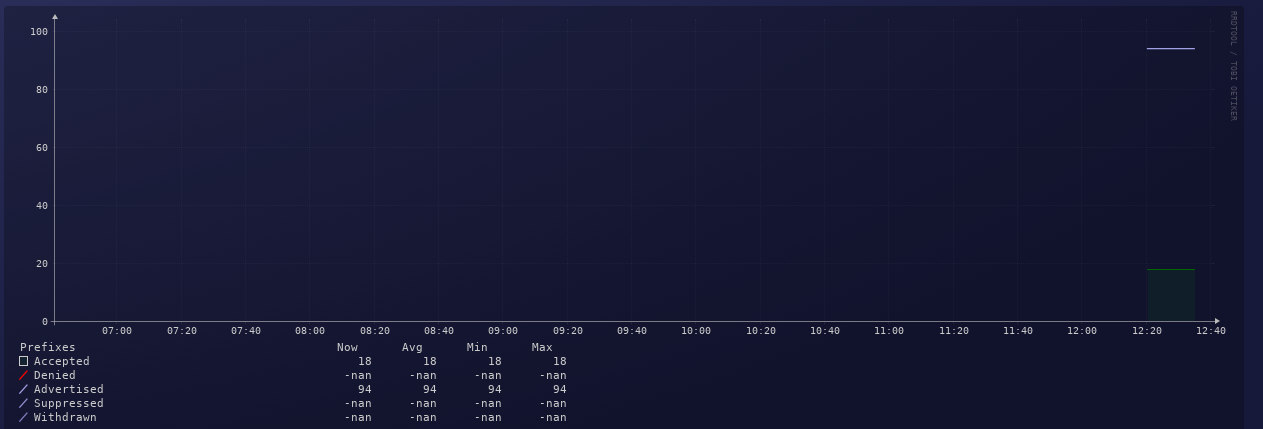

The strange is, the same equipment with NaN in some peers, show the new peers with the right information.
CMD RUNTIME[0.0259s] |
STDOUT[
|
aristaBgp4V2PrefixInPrefixes.1.1.4.10.1.3.187.1.1 = 154 |
aristaBgp4V2PrefixInPrefixes.1.1.4.10.1.3.188.1.1 = 153 |
aristaBgp4V2PrefixInPrefixes.1.1.4.10.1.20.91.1.1 = 1 |
aristaBgp4V2PrefixInPrefixes.1.1.4.10.1.20.108.1.1 = 4 |
aristaBgp4V2PrefixInPrefixes.1.1.4.10.1.27.201.1.1 = 0 |
aristaBgp4V2PrefixInPrefixes.1.1.4.10.1.27.203.1.1 = 154 |
aristaBgp4V2PrefixInPrefixes.1.1.4.10.1.27.204.1.1 = 153 |
aristaBgp4V2PrefixInPrefixes.1.1.4.10.1.127.9.1.1 = 76 |
aristaBgp4V2PrefixInPrefixes.1.1.4.10.4.11.10.1.1 = 77 |
aristaBgp4V2PrefixInPrefixes.1.1.4.10.4.11.22.1.1 = 77 |
aristaBgp4V2PrefixInPrefixes.1.1.4.10.4.13.10.1.1 = 305 |
aristaBgp4V2PrefixInPrefixes.1.1.4.10.4.13.22.1.1 = 305 |
aristaBgp4V2PrefixInPrefixes.1.1.4.10.250.16.123.1.1 = 45 |
aristaBgp4V2PrefixInPrefixes.1.1.4.10.250.16.163.1.1 = 13 |
aristaBgp4V2PrefixInPrefixes.1.1.4.10.250.99.33.1.1 = 81 |
aristaBgp4V2PrefixInPrefixes.1.1.4.10.250.99.34.1.1 = 80 |
aristaBgp4V2PrefixInPrefixes.1.1.4.10.255.16.123.1.1 = 55 |
aristaBgp4V2PrefixInPrefixes.1.1.4.10.255.16.163.1.1 = 13 |
gethostbyaddr6(10.1.20.108) failed: DNS request failed: The domain name referenced in the query does not exist.bgpPeerLocalAddr: 10.1.20.108, bgpPeerRemoteAddr: 10.1.20.107SQL[SELECT * FROM `devices` LEFT JOIN `devices_locations` USING (`device_id`) WHERE `device_id` = '455'] |
SQL RUNTIME[0.0015142s]SQL[SELECT * FROM `device_graphs` WHERE `device_id` = '455'] |
SQL RUNTIME[0.00096989s]SQL[SELECT * FROM `bgpPeers` WHERE `device_id` = '6' AND `bgpPeerRemoteAddr` = '10.1.20.108'] |
SQL RUNTIME[0.00137186s] |
INDEX: 1.1.4.10.1.20.108, AS: 59576, IP: 10.1.20.108, AFI: ipv4, SAFI: unicastSQL[SELECT EXISTS (SELECT 1 FROM `bgpPeers_cbgp` WHERE `device_id` = '6' AND `bgpPeer_id` = '9761' AND `afi` = 'ipv4' AND `safi` = 'unicast')] |
SQL RUNTIME[0.00084591s]SQL[UPDATE `bgpPeers_cbgp` SET `bgpPeerIndex` ='1.1.4.10.1.20.108' WHERE device_id = '6' AND `bgpPeer_id` = '9761' AND `afi` = 'ipv4' AND `safi` = 'unicast'] |
|
You should not ignore the requested information.
These counters only show the values that the device transmitted via snmp.
If they do not match the actual values, you need to check the latest firmware of the device and contact the device vendor.
We can only help by pointing out the data that needs to be checked according to the devel information (requested in previous comment).
General questions and device support can be discussed in our Discord channel, click here to join.
Please make and attach additional information about the device:
- full snmp dump from device:
snmpwalk -v2c -c <community> -t 3 -Cc --hexOutputLength=0 -Ih -ObentxU <hostname> .1 > myagent.snmpwalksnmpwalk -v2c -c <community> -t 3 -Cc --hexOutputLength=0 -Ih -ObentxU <hostname> .1.3.6.1.4.1 >> myagent.snmpwalkIf device not support SNMP version 2c, replace -v2c with -v1.
- If you have problems with discovery or poller processes, please do and attach these debugs:
./discovery.php -d -h <device>./poller.php -d -h <device>
- additionally attach device and/or vendor specific MIB files
This comment is added automatically.
Fixed Mike, thx so much!
