Minor Description
1)
Прошу добавить оборудование VipNet HW100/HW1000
Выгрузка для
snmpwalk -u <user> -A <pass> -a MD5 -X <pass> -x AES -l authPriv <ip> -v3 -Cc --hexOutputLength=0 -ObentxU
В файле vipnet-hw100 snmpwalk-v3.txt
2)
Вся доступная мне документация по SNMP от вендора
Доки для немного другой версии, но насколько могу судить не отличаются наименования MIB'ов
В файле VIPNET-MIB.txt
В файле ViPNet Coordinator HW 4.5.4 MIB.zip
В файле ViPNet Coordinator HW 4.5.4 Doc.zip
Attachments
Activity
General questions and device support can be discussed in our Discord channel, click here to join.
Please make and attach additional information about the device:
- full snmp dump from device:
snmpwalk -v2c -c <community> -t 3 -Cc --hexOutputLength=0 -Ih -ObentxU <hostname> .1 > myagent.snmpwalksnmpwalk -v2c -c <community> -t 3 -Cc --hexOutputLength=0 -Ih -ObentxU <hostname> .1.3.6.1.4.1 >> myagent.snmpwalkIf device not support SNMP version 2c, replace -v2c with -v1.
- If you have problems with discovery or poller processes, please do and attach these debugs:
./discovery.php -d -h <device>./poller.php -d -h <device>
- additionally attach device and/or vendor specific MIB files
This comment is added automatically.
Its only SNMPv3.
File with snmpwalk is attached

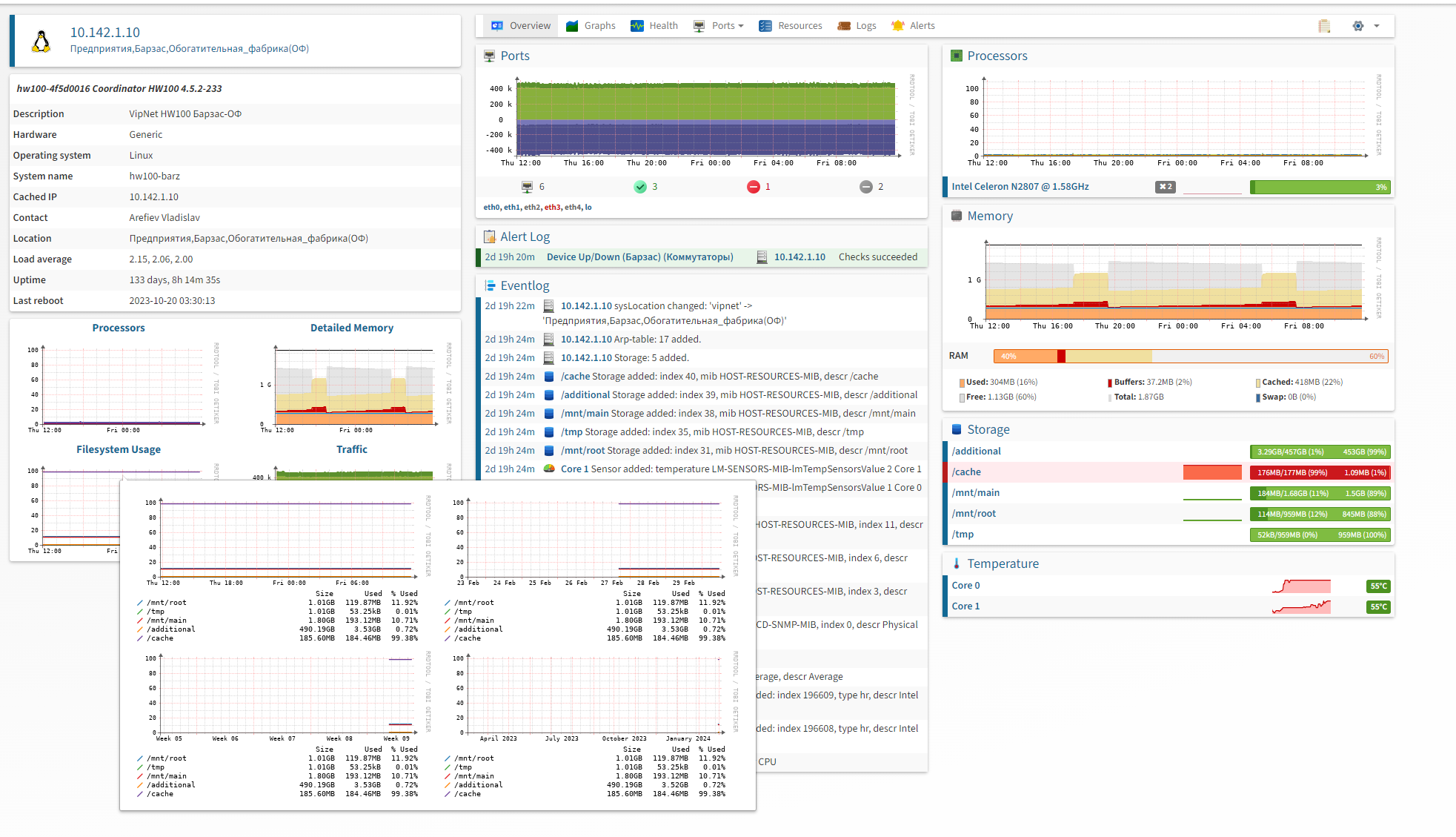

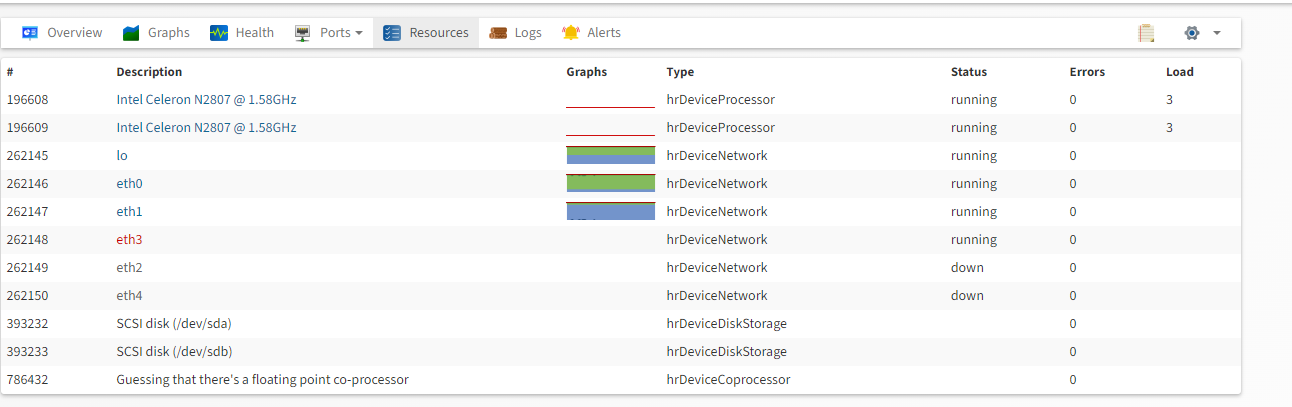

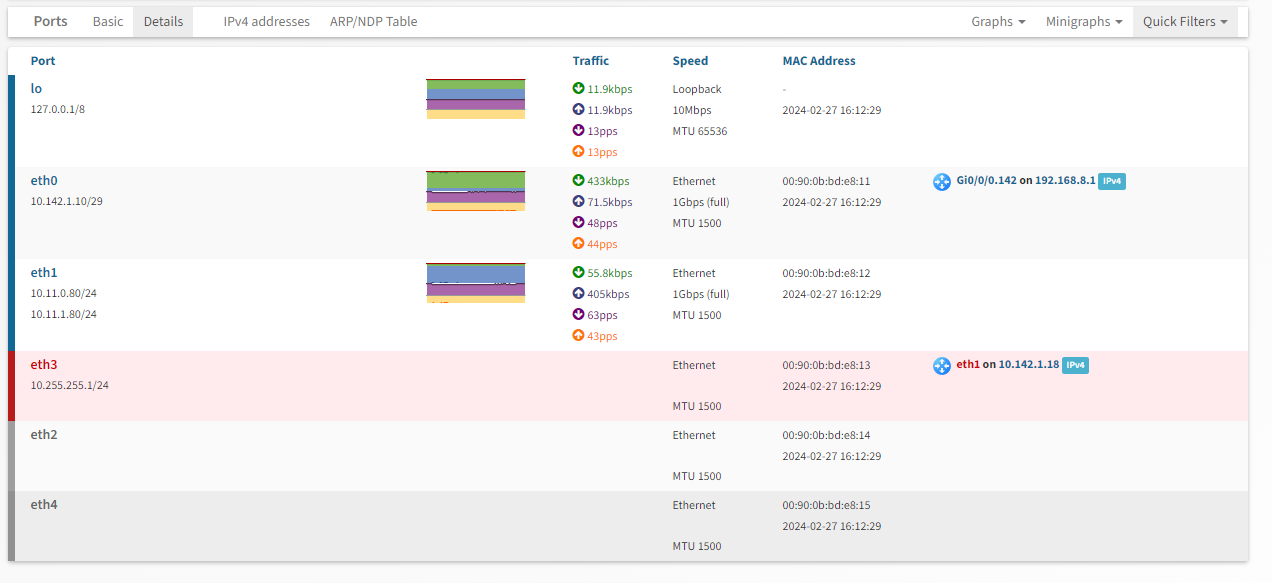

Discovery and poller working fine with vipnet HW100
I need only image and correct name of version and hw
