MRTG Graphs does not working

Details

    • Bug
    • Resolution: Unresolved
    • Major
    • None
    • None
    • Default
    • None
    • Debian Server with Apache and PHP 8.1

    Description

      I have defined graph style to MRTG but system does not generate graphics on MRTG style, only on "default". Both setting $config['graphs']['style'] = "mrtg" or using web UI config to MRTG style does not work.



      Attachments

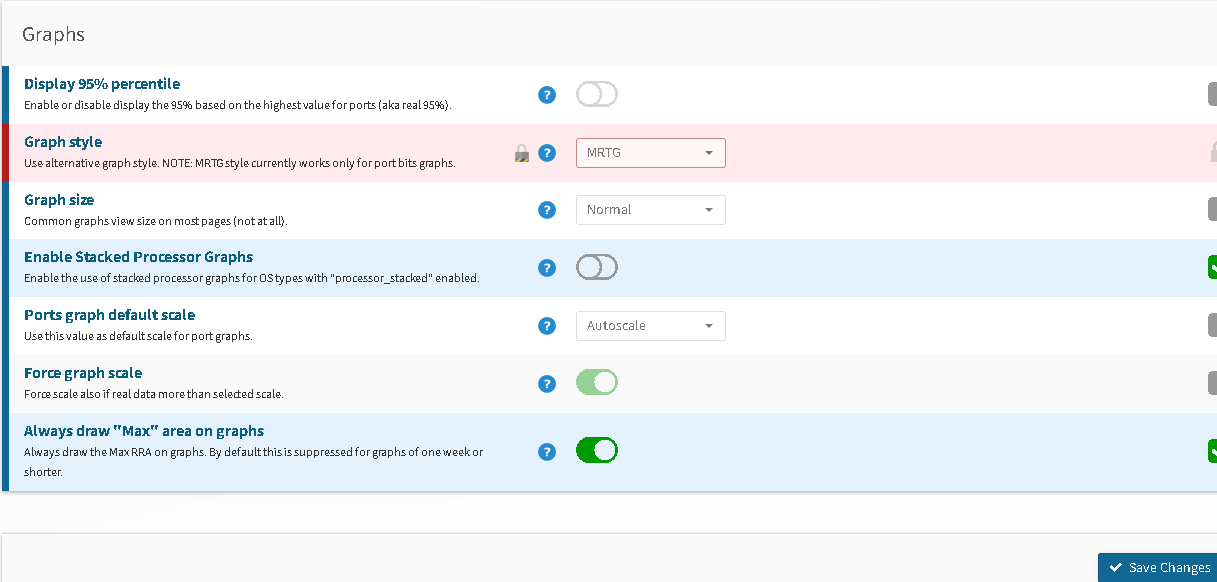

        1. gsettings.png
          23 kB
        2. myagent.snmpwalk
          114 kB
        3. rrd-print.png
          83 kB
        4. rrdtool-command.txt
          5 kB
        5. rrdtool-graph.png
          14 kB

        Activity

          [OBS-4254] MRTG Graphs does not working
          challado Lucas Bocchi added a comment -

          Bug continues on observium 22.12.12447

          challado Lucas Bocchi added a comment - Bug continues on observium 22.12.12447
          challado Lucas Bocchi added a comment -

          As solicited, folow myagent.snmpwalk file
          myagent.snmpwalk

          challado Lucas Bocchi added a comment - As solicited, folow myagent.snmpwalk file myagent.snmpwalk
          challado Lucas Bocchi added a comment -

          Observium Version: 22.5.12042

          challado Lucas Bocchi added a comment - Observium Version: 22.5.12042
          bot Observium Bot added a comment -

          General questions and device support can be discussed in our Discord channel, click here to join.

          Please make and attach additional information about the device:

          • full snmp dump from device:

            snmpwalk -v2c -c <community> -t 3 -Cc --hexOutputLength=0 -ObentxU <hostname> .1 > myagent.snmpwalk

            snmpwalk -v2c -c <community> -t 3 -Cc --hexOutputLength=0 -ObentxU <hostname> .1.3.6.1.4.1 >> myagent.snmpwalk

            If device not support SNMP version 2c, replace -v2c with -v1.

          • If you have problems with discovery or poller processes, please do and attach these debugs:

            ./discovery.php -d -h <device>

            ./poller.php -d -h <device>

          • additionally attach device and/or vendor specific MIB files

          This comment is added automatically.

          bot Observium Bot added a comment - General questions and device support can be discussed in our Discord channel, click here to join . Please make and attach additional information about the device: full snmp dump from device: snmpwalk -v2c -c <community> -t 3 -Cc --hexOutputLength=0 -ObentxU <hostname> .1 > myagent.snmpwalk snmpwalk -v2c -c <community> -t 3 -Cc --hexOutputLength=0 -ObentxU <hostname> .1.3.6.1.4.1 >> myagent.snmpwalk If device not support SNMP version 2c, replace -v2c with -v1. If you have problems with discovery or poller processes, please do and attach these debugs: ./discovery.php -d -h <device> ./poller.php -d -h <device> additionally attach device and/or vendor specific MIB files This comment is added automatically.
