Using human-readable "from" periods produce empty graphs

I've restored passthrough of AT/timespec from/to variables on graph.php, but beware that they won't behave the same as the other time passing methods!

Oh, the "period" parameter is fine then as I can just precalculate how many seconds is "1w" or "1m" and so on. I was afraid only "from"/"to" epoch parameters were left which obviously would not work in a static link.

Was just wishing there would be some kind of feature changelog - I follow the svn log religiously but this change has definitely not been obvious on it.

Thanks, the issue can be closed.

For the record:

• -1d = period=86400
• -1w = period=604800
• -1m = period=2678400 (31 d)
• -1y = period=31536000

Hi Ville,

This is somewhat expected behaviour at the moment. The ability to pass through "AT-style" or "timespec" was never fully supported, but we could pass those values through to rrdtool where provided.

Some of the graph features require us to generate a "period" from the from/to values to do things like showing the "previous" graphing period. I reworked the code that handled this recently because it was split across multiple files and wasn't handling dates correctly.

There's not really an easy way to do this stuff with AT/timespec in PHP, so we may drop this ability as it will always break certain graph types.

The "official" way to do these sorts of time periods is with period=<graph period in seconds>

I should have probably said that these "human-readable" values for "from" are massively useful in that: we do not need to know the start time or do any calculations, just ask for graph for the last "x" "days/weeks/monts/years" - very useful for linking to graphs and/or displaying graphs in static web pages and otherwise "dumb" systems.

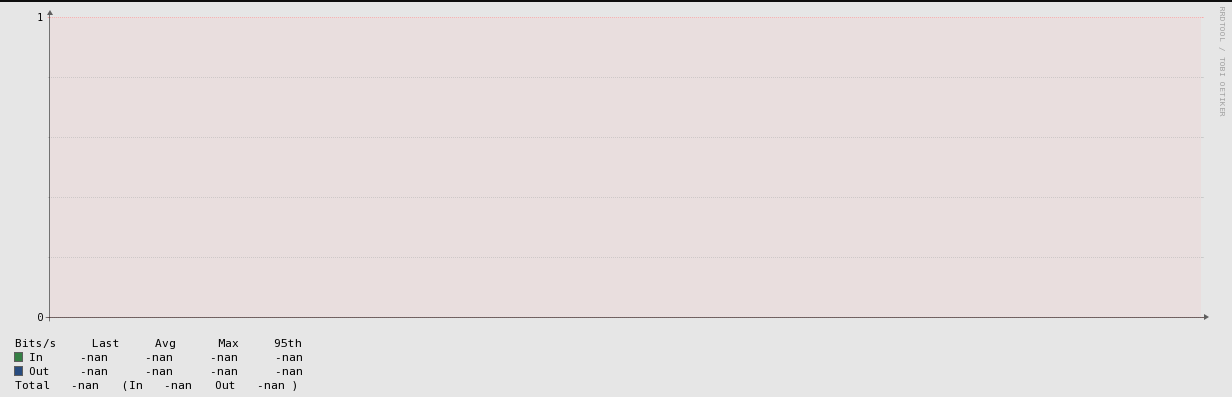

Graphs are otherwise working totally fine, just the addition of "from=-1w" (for example) produces an empty graph:
