Details

Type: Bug
Resolution: Fixed
Priority: Major
Fix Version/s: None
Affects Version/s: Community Edition
Component/s: Ports
Labels:
- icx7850
- interface
- ruckus
- sensors

Description

Hi,

(Observium Version: Observium CE 20.9.10731)

we are using Ruckus ICX Switches type 7450, 7750 and 7850.

I activated optical-monitoring feature in the switch to get values into observium. The output from switch e.g.:

Port Temperature Voltage Tx Power Rx Power Tx Bias Current
--------------------------------------------------------------+
1/1/44 31.6679 C 3.2877 volts -007.8489 dBm -008.9962 dBm 15.792 mA
Normal Normal Normal Normal Normal

Via SNMP from obserium we get:

CMD RUNTIME[0.0537s]
STDOUT[
snIfOpticalLaneMonitoringTemperature.44.1 = " 31.6679 C Normal"
snIfOpticalLaneMonitoringTemperature.300.1 = " 30.6992 C Normal"
snIfOpticalLaneMonitoringTxPower.44.1 = "-007.8489 dBm Normal"
snIfOpticalLaneMonitoringTxPower.300.1 = "-007.8595 dBm Normal"
snIfOpticalLaneMonitoringRxPower.44.1 = "-008.9962 dBm Normal"
snIfOpticalLaneMonitoringRxPower.300.1 = "-005.3461 dBm Normal"
snIfOpticalLaneMonitoringTxBiasCurrent.44.1 = " 15.792 mA Normal"
snIfOpticalLaneMonitoringTxBiasCurrent.300.1 = " 15.980 mA Normal"
snIfOpticalLaneMonitoringEntry.6.44.1 = "3.2877 volts Normal"
snIfOpticalLaneMonitoringEntry.6.300.1 = "3.3011 volts Normal"
]

if I understand it right, this values normally does have only INT values, right?

How we can fix this issue to get the values in the right format into observium?

SQL[SELECT `mib` FROM `devices_mibs` WHERE `device_id` = '411' AND `use` = 'mib' AND `disabled` = '1']
SQL RUNTIME[0.00006819s]
o FOUNDRY-SN-SWITCH-GROUP-MIB
CMD[/usr/bin/snmpbulkwalk -Cr'60' -t '3' -r '3' -v2c -c *** -Pud -OQUs -m FOUNDRY-SN-SWITCH-GROUP-MIB -M /opt/observium/mibs/rfc:/opt/observium/mibs/net-snmp:/opt/observium/mibs/brocade 'udp':'100.127.255.2':'161' snIfOpticalMonitoringTxBiasCurrent]

CMD EXITCODE[0]
CMD RUNTIME[0.0254s]
STDOUT[
snIfOpticalMonitoringTxBiasCurrent = No Such Object available on this agent at this OID
]
SNMP STATUS[FALSE]
SNMP ERROR1000 - Failed response

CMD[/usr/bin/snmpbulkwalk -Cr'60' -t '3' -r '3' -v2c -c *** -Pud -OQUs -m FOUNDRY-SN-SWITCH-GROUP-MIB -M /opt/observium/mibs/rfc:/opt/observium/mibs/net-snmp:/opt/observium/mibs/brocade 'udp':'100.127.255.2':'161' snIfOpticalMonitoringTxPower]

CMD EXITCODE[0]
CMD RUNTIME[0.0318s]
STDOUT[
snIfOpticalMonitoringTxPower = No Such Object available on this agent at this OID
]
SNMP STATUS[FALSE]
SNMP ERROR1000 - Failed response

CMD[/usr/bin/snmpbulkwalk -Cr'60' -t '3' -r '3' -v2c -c *** -Pud -OQUs -m FOUNDRY-SN-SWITCH-GROUP-MIB -M /opt/observium/mibs/rfc:/opt/observium/mibs/net-snmp:/opt/observium/mibs/brocade 'udp':'100.127.255.2':'161' snIfOpticalMonitoringRxPower]

CMD EXITCODE[0]
CMD RUNTIME[0.0344s]
STDOUT[
snIfOpticalMonitoringRxPower = No Such Object available on this agent at this OID
]
SNMP STATUS[FALSE]
SNMP ERROR1000 - Failed response

CMD[/usr/bin/snmpbulkwalk -Cr'60' -t '3' -r '3' -v2c -c *** -Pud -OQUs -m FOUNDRY-SN-SWITCH-GROUP-MIB -M /opt/observium/mibs/rfc:/opt/observium/mibs/net-snmp:/opt/observium/mibs/brocade 'udp':'100.127.255.2':'161' snIfOpticalMonitoringTemperature]

CMD EXITCODE[0]
CMD RUNTIME[0.0326s]
STDOUT[
snIfOpticalMonitoringTemperature = No Such Object available on this agent at this OID
]
SNMP STATUS[FALSE]
SNMP ERROR1000 - Failed response

CMD[/usr/bin/snmpbulkwalk -Cr'60' -t '3' -r '3' -v2c -c *** -Pud -OQUs -m FOUNDRY-SN-SWITCH-GROUP-MIB -M /opt/observium/mibs/rfc:/opt/observium/mibs/net-snmp:/opt/observium/mibs/brocade 'udp':'100.127.255.2':'161' snIfOpticalLaneMonitoringTable]

CMD EXITCODE[0]
CMD RUNTIME[0.0537s]
STDOUT[
snIfOpticalLaneMonitoringTemperature.44.1 = " 31.6679 C Normal"
snIfOpticalLaneMonitoringTemperature.300.1 = " 30.6992 C Normal"
snIfOpticalLaneMonitoringTxPower.44.1 = "-007.8489 dBm Normal"
snIfOpticalLaneMonitoringTxPower.300.1 = "-007.8595 dBm Normal"
snIfOpticalLaneMonitoringRxPower.44.1 = "-008.9962 dBm Normal"
snIfOpticalLaneMonitoringRxPower.300.1 = "-005.3461 dBm Normal"
snIfOpticalLaneMonitoringTxBiasCurrent.44.1 = " 15.792 mA Normal"
snIfOpticalLaneMonitoringTxBiasCurrent.300.1 = " 15.980 mA Normal"
snIfOpticalLaneMonitoringEntry.6.44.1 = "3.2877 volts Normal"
snIfOpticalLaneMonitoringEntry.6.300.1 = "3.3011 volts Normal"
]
SNMP STATUS[TRUE]

SQL[SELECT `port_id` FROM `ports` WHERE `device_id` = '411' AND `ifIndex` = '44' AND `deleted` = '0' LIMIT 1]
SQL RUNTIME[0.00055408s]

SQL[SELECT * FROM `ports` WHERE `ports`.`port_id` = '596811']
SQL RUNTIME[0.00323796s]

SQL[SELECT * FROM `entity_attribs` WHERE `entity_type` = 'port' AND `entity_id` = '596811']
SQL RUNTIME[0.00198388s]

SQL[SELECT * FROM `devices` WHERE `device_id` = '411']
SQL RUNTIME[0.00287604s]

SQL[SELECT * FROM `device_graphs` WHERE `device_id` = '411']
SQL RUNTIME[0.00016904s]
Discover sensor: [class: temperature, device: 100.127.255.2, oid: .1.3.6.1.4.1.1991.1.1.3.3.10.1.2.44.1, index: 44.1, type: FOUNDRY-SN-SWITCH-GROUP-MIB-snIfOpticalLaneMonitoringTemperature, descr: 10GigabitEthernet1/1/44 Lane 1, scale: 1, limits: (, , , ), CURRENT: 31.6679, ,

SQL[SELECT EXISTS (SELECT 1 FROM `sensors` WHERE `poller_type`= 'snmp' AND `sensor_class` = 'temperature' AND `device_id` = '411' AND `sensor_type` = 'FOUNDRY-SN-SWITCH-GROUP-MIB-snIfOpticalLaneMonitoringTemperature' AND `sensor_index` = '44.1')]
SQL RUNTIME[0.00191212s]

SQL[SELECT * FROM `sensors` WHERE `sensor_class` = 'temperature' AND `device_id` = '411' AND `sensor_type` = 'FOUNDRY-SN-SWITCH-GROUP-MIB-snIfOpticalLaneMonitoringTemperature' AND `sensor_index` = '44.1']
SQL RUNTIME[0.00207305s]

SQL[SELECT `attrib_value` FROM `entity_attribs` WHERE `entity_type` = 'sensor' AND `entity_id` = '33624' AND `attrib_type` = 'sensor_addition']
SQL RUNTIME[0.00016594s]
.DOM power sensor forced to dBm sensor.
Converted DBM value: -7.8489E-6 W -> FALSE
Discover sensor: [class: dbm, device: 100.127.255.2, oid: .1.3.6.1.4.1.1991.1.1.3.3.10.1.3.44.1, index: 44.1, type: FOUNDRY-SN-SWITCH-GROUP-MIB-snIfOpticalLaneMonitoringTxPower, descr: 10GigabitEthernet1/1/44 Lane 1 TX Power, scale: 1.0E-6, limits: (, , , ), CURRENT: , ,

SQL[SELECT EXISTS (SELECT 1 FROM `sensors` WHERE `poller_type`= 'snmp' AND `sensor_class` = 'dbm' AND `device_id` = '411' AND `sensor_type` = 'FOUNDRY-SN-SWITCH-GROUP-MIB-snIfOpticalLaneMonitoringTxPower' AND `sensor_index` = '44.1')]
SQL RUNTIME[0.00077009s]

SQL[SELECT * FROM `sensors` WHERE `sensor_class` = 'dbm' AND `device_id` = '411' AND `sensor_type` = 'FOUNDRY-SN-SWITCH-GROUP-MIB-snIfOpticalLaneMonitoringTxPower' AND `sensor_index` = '44.1']
SQL RUNTIME[0.00129390s]

SQL[SELECT `attrib_value` FROM `entity_attribs` WHERE `entity_type` = 'sensor' AND `entity_id` = '33628' AND `attrib_type` = 'sensor_addition']
SQL RUNTIME[0.00011206s]
.DOM power sensor forced to dBm sensor.
Converted DBM value: -8.9962E-6 W -> FALSE
Discover sensor: [class: dbm, device: 100.127.255.2, oid: .1.3.6.1.4.1.1991.1.1.3.3.10.1.4.44.1, index: 44.1, type: FOUNDRY-SN-SWITCH-GROUP-MIB-snIfOpticalLaneMonitoringRxPower, descr: 10GigabitEthernet1/1/44 Lane 1 RX Power, scale: 1.0E-6, limits: (, , , ), CURRENT: , ,

SQL[SELECT EXISTS (SELECT 1 FROM `sensors` WHERE `poller_type`= 'snmp' AND `sensor_class` = 'dbm' AND `device_id` = '411' AND `sensor_type` = 'FOUNDRY-SN-SWITCH-GROUP-MIB-snIfOpticalLaneMonitoringRxPower' AND `sensor_index` = '44.1')]
SQL RUNTIME[0.00051188s]

SQL[SELECT * FROM `sensors` WHERE `sensor_class` = 'dbm' AND `device_id` = '411' AND `sensor_type` = 'FOUNDRY-SN-SWITCH-GROUP-MIB-snIfOpticalLaneMonitoringRxPower' AND `sensor_index` = '44.1']
SQL RUNTIME[0.00060105s]

SQL[SELECT `attrib_value` FROM `entity_attribs` WHERE `entity_type` = 'sensor' AND `entity_id` = '33629' AND `attrib_type` = 'sensor_addition']
SQL RUNTIME[0.00012088s]
.Discover sensor: [class: current, device: 100.127.255.2, oid: .1.3.6.1.4.1.1991.1.1.3.3.10.1.5.44.1, index: 44.1, type: FOUNDRY-SN-SWITCH-GROUP-MIB-snIfOpticalLaneMonitoringTxBiasCurrent, descr: 10GigabitEthernet1/1/44 Lane 1 TX Bias Current, scale: 0.001, limits: (, , , ), CURRENT: 0.015792, ,

SQL[SELECT EXISTS (SELECT 1 FROM `sensors` WHERE `poller_type`= 'snmp' AND `sensor_class` = 'current' AND `device_id` = '411' AND `sensor_type` = 'FOUNDRY-SN-SWITCH-GROUP-MIB-snIfOpticalLaneMonitoringTxBiasCurrent' AND `sensor_index` = '44.1')]
SQL RUNTIME[0.00069189s]

SQL[SELECT * FROM `sensors` WHERE `sensor_class` = 'current' AND `device_id` = '411' AND `sensor_type` = 'FOUNDRY-SN-SWITCH-GROUP-MIB-snIfOpticalLaneMonitoringTxBiasCurrent' AND `sensor_index` = '44.1']
SQL RUNTIME[0.00085711s]

SQL[SELECT `attrib_value` FROM `entity_attribs` WHERE `entity_type` = 'sensor' AND `entity_id` = '33627' AND `attrib_type` = 'sensor_addition']
SQL RUNTIME[0.00010991s]
.
SQL[SELECT `port_id` FROM `ports` WHERE `device_id` = '411' AND `ifIndex` = '300' AND `deleted` = '0' LIMIT 1]
SQL RUNTIME[0.00034094s]

SQL[SELECT * FROM `ports` WHERE `ports`.`port_id` = '596922']
SQL RUNTIME[0.00108600s]

SQL[SELECT * FROM `entity_attribs` WHERE `entity_type` = 'port' AND `entity_id` = '596922']
SQL RUNTIME[0.00011492s]
Discover sensor: [class: temperature, device: 100.127.255.2, oid: .1.3.6.1.4.1.1991.1.1.3.3.10.1.2.300.1, index: 300.1, type: FOUNDRY-SN-SWITCH-GROUP-MIB-snIfOpticalLaneMonitoringTemperature, descr: 10GigabitEthernet2/1/44 Lane 1, scale: 1, limits: (, , , ), CURRENT: 30.6992, ,

SQL[SELECT EXISTS (SELECT 1 FROM `sensors` WHERE `poller_type`= 'snmp' AND `sensor_class` = 'temperature' AND `device_id` = '411' AND `sensor_type` = 'FOUNDRY-SN-SWITCH-GROUP-MIB-snIfOpticalLaneMonitoringTemperature' AND `sensor_index` = '300.1')]
SQL RUNTIME[0.00070882s]

SQL[SELECT * FROM `sensors` WHERE `sensor_class` = 'temperature' AND `device_id` = '411' AND `sensor_type` = 'FOUNDRY-SN-SWITCH-GROUP-MIB-snIfOpticalLaneMonitoringTemperature' AND `sensor_index` = '300.1']
SQL RUNTIME[0.00077200s]

SQL[SELECT `attrib_value` FROM `entity_attribs` WHERE `entity_type` = 'sensor' AND `entity_id` = '33582' AND `attrib_type` = 'sensor_addition']
SQL RUNTIME[0.00010896s]
.DOM power sensor forced to dBm sensor.
Converted DBM value: -7.8595E-6 W -> FALSE
Discover sensor: [class: dbm, device: 100.127.255.2, oid: .1.3.6.1.4.1.1991.1.1.3.3.10.1.3.300.1, index: 300.1, type: FOUNDRY-SN-SWITCH-GROUP-MIB-snIfOpticalLaneMonitoringTxPower, descr: 10GigabitEthernet2/1/44 Lane 1 TX Power, scale: 1.0E-6, limits: (, , , ), CURRENT: , ,

SQL[SELECT EXISTS (SELECT 1 FROM `sensors` WHERE `poller_type`= 'snmp' AND `sensor_class` = 'dbm' AND `device_id` = '411' AND `sensor_type` = 'FOUNDRY-SN-SWITCH-GROUP-MIB-snIfOpticalLaneMonitoringTxPower' AND `sensor_index` = '300.1')]
SQL RUNTIME[0.00045300s]

SQL[SELECT * FROM `sensors` WHERE `sensor_class` = 'dbm' AND `device_id` = '411' AND `sensor_type` = 'FOUNDRY-SN-SWITCH-GROUP-MIB-snIfOpticalLaneMonitoringTxPower' AND `sensor_index` = '300.1']
SQL RUNTIME[0.00062799s]

SQL[SELECT `attrib_value` FROM `entity_attribs` WHERE `entity_type` = 'sensor' AND `entity_id` = '33630' AND `attrib_type` = 'sensor_addition']
SQL RUNTIME[0.00009894s]
.DOM power sensor forced to dBm sensor.
Converted DBM value: -5.3461E-6 W -> FALSE
Discover sensor: [class: dbm, device: 100.127.255.2, oid: .1.3.6.1.4.1.1991.1.1.3.3.10.1.4.300.1, index: 300.1, type: FOUNDRY-SN-SWITCH-GROUP-MIB-snIfOpticalLaneMonitoringRxPower, descr: 10GigabitEthernet2/1/44 Lane 1 RX Power, scale: 1.0E-6, limits: (, , , ), CURRENT: , ,

SQL[SELECT EXISTS (SELECT 1 FROM `sensors` WHERE `poller_type`= 'snmp' AND `sensor_class` = 'dbm' AND `device_id` = '411' AND `sensor_type` = 'FOUNDRY-SN-SWITCH-GROUP-MIB-snIfOpticalLaneMonitoringRxPower' AND `sensor_index` = '300.1')]
SQL RUNTIME[0.00082088s]

SQL[SELECT * FROM `sensors` WHERE `sensor_class` = 'dbm' AND `device_id` = '411' AND `sensor_type` = 'FOUNDRY-SN-SWITCH-GROUP-MIB-snIfOpticalLaneMonitoringRxPower' AND `sensor_index` = '300.1']
SQL RUNTIME[0.00081897s]

SQL[SELECT `attrib_value` FROM `entity_attribs` WHERE `entity_type` = 'sensor' AND `entity_id` = '33631' AND `attrib_type` = 'sensor_addition']
SQL RUNTIME[0.00011182s]
.Discover sensor: [class: current, device: 100.127.255.2, oid: .1.3.6.1.4.1.1991.1.1.3.3.10.1.5.300.1, index: 300.1, type: FOUNDRY-SN-SWITCH-GROUP-MIB-snIfOpticalLaneMonitoringTxBiasCurrent, descr: 10GigabitEthernet2/1/44 Lane 1 TX Bias Current, scale: 0.001, limits: (, , , ), CURRENT: 0.01598, ,

SQL[SELECT EXISTS (SELECT 1 FROM `sensors` WHERE `poller_type`= 'snmp' AND `sensor_class` = 'current' AND `device_id` = '411' AND `sensor_type` = 'FOUNDRY-SN-SWITCH-GROUP-MIB-snIfOpticalLaneMonitoringTxBiasCurrent' AND `sensor_index` = '300.1')]
SQL RUNTIME[0.00056100s]

SQL[SELECT * FROM `sensors` WHERE `sensor_class` = 'current' AND `device_id` = '411' AND `sensor_type` = 'FOUNDRY-SN-SWITCH-GROUP-MIB-snIfOpticalLaneMonitoringTxBiasCurrent' AND `sensor_index` = '300.1']
SQL RUNTIME[0.00054908s]

SQL[SELECT `attrib_value` FROM `entity_attribs` WHERE `entity_type` = 'sensor' AND `entity_id` = '33585' AND `attrib_type` = 'sensor_addition']
SQL RUNTIME[0.00009704s]
.
SQL[SELECT `port_id` FROM `ports` WHERE `device_id` = '411' AND `ifIndex` = '6' AND `deleted` = '0' LIMIT 1]
SQL RUNTIME[0.00017905s]

SQL[SELECT * FROM `ports` WHERE `ports`.`port_id` = '596773']
SQL RUNTIME[0.00025487s]

SQL[SELECT * FROM `entity_attribs` WHERE `entity_type` = 'port' AND `entity_id` = '596773']
SQL RUNTIME[0.00011396s]
Sensor skipped by not numeric value: '', '10GigabitEthernet1/1/6 Lane 44.1'
DOM power sensor forced to dBm sensor.
Sensor skipped by not numeric value: '', '10GigabitEthernet1/1/6 Lane 44.1 TX Power'
DOM power sensor forced to dBm sensor.
Sensor skipped by not numeric value: '', '10GigabitEthernet1/1/6 Lane 44.1 RX Power'
Sensor skipped by not numeric value: '', '10GigabitEthernet1/1/6 Lane 44.1 TX Bias Current'
Sensor skipped by not numeric value: '', '10GigabitEthernet1/1/6 Lane 300.1'
DOM power sensor forced to dBm sensor.
Sensor skipped by not numeric value: '', '10GigabitEthernet1/1/6 Lane 300.1 TX Power'
DOM power sensor forced to dBm sensor.
Sensor skipped by not numeric value: '', '10GigabitEthernet1/1/6 Lane 300.1 RX Power'
Sensor skipped by not numeric value: '', '10GigabitEthernet1/1/6 Lane 300.1 TX Bias Current'

Attachments

- Sort By Name
- Sort By Date
- Ascending
- Descending
- Thumbnails
- List
- Download All

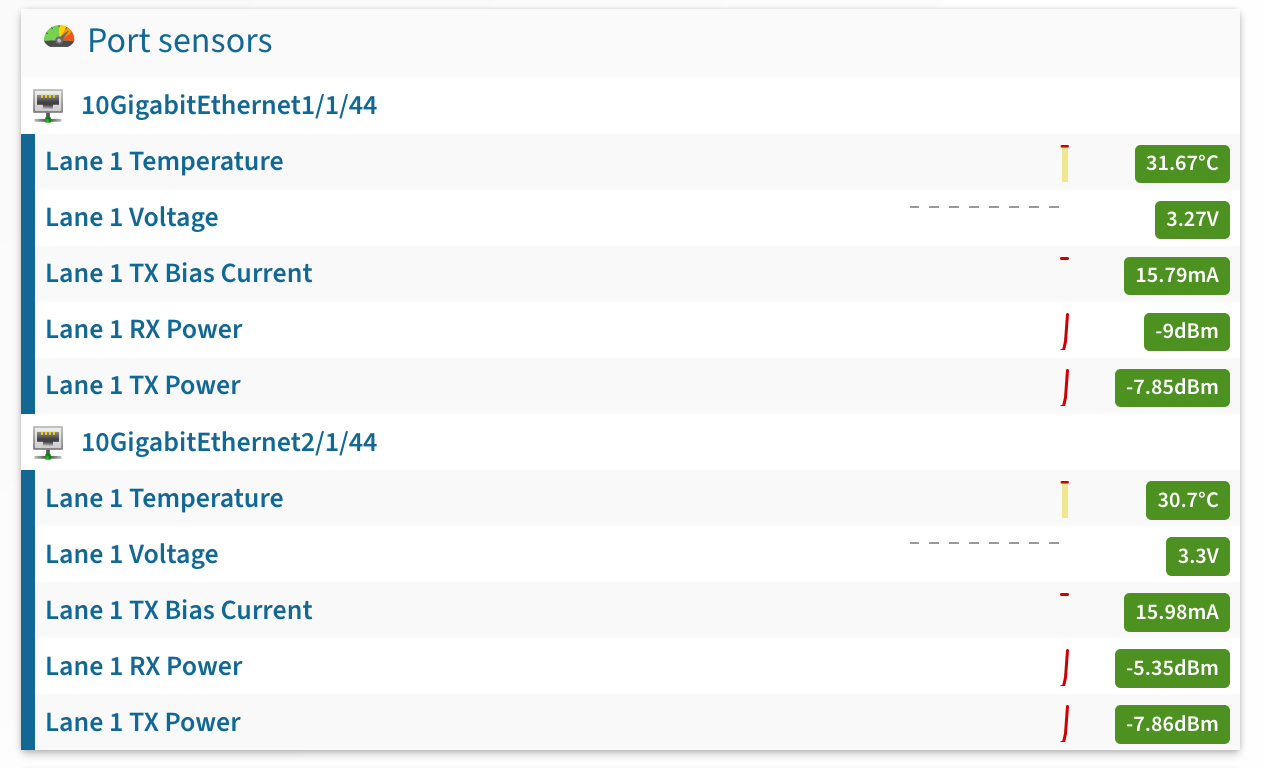

Observium - foundry-icx 2021-03-10 17-56-29.png
124 kB
2021/03/10 02:59 PM

Convertation failed because of String Value
