    Description

      I have added improved support for these devices: http://www.hw-group.com/products/HWg-PWR/hwg-pwr25_M-bus_gateway_en.html

      As I don't really have programming skills I tried to adapt the configuration of the HWG-STE device, as it is form the same manufacturer.
      Therefore I modified the existing hwg-pwr entry in os.in.php to:

      os = "hwg-pwr";
      $config['os'][$os]['text'] = "HWg-PWR";
      $config['os'][$os]['type'] = "environment";
      $config['os'][$os]['snmp']['nobulk'] = 1;
      $config['os'][$os]['vendor'] = "HW Group";
      $config['os'][$os]['icon'] = "hwggroup";
      $config['os'][$os]['sysObjectID'][] = ".1.3.6.1.4.1.21796.4.6";
      $config['os'][$os]['mibs'][] = "HWG-PWR-MIB";

      I also added a new icon, see attachment.
      Enclosed you will also find the MIB file HWG-PWR-MIB I have placed to /mibs/hwgroup.

      I added another sensor type called energy to display the kWh:
      /includes/definitions/sensors.inc.php
      ==> $config['sensor_types']['energy'] = array( 'symbol' => 'kWh', 'text' => 'kiloWatthours','icon' => 'oicon-power');

      Enclosed I am also sending you the newly created files:
      /html/includes/graphs/sensor/energy.inc.php
      /includes/discovery/sensors/hwg-pwr-mib.inc.php

      Everything works fine for me...

      Attachments

        1. energy.inc.php
          0.8 kB
          Siegfried Gumilar
        2. HWG-PWR-MIB
          7 kB
          Siegfried Gumilar
        3. hwg-pwr-mib.inc.php
          2 kB
          Siegfried Gumilar
        4. hwgroup.png
          0.5 kB
          Siegfried Gumilar
        5. image-2019-05-09-11-16-18-537.png
          12 kB
          Siegfried Gumilar
        6. image-2019-05-09-14-42-18-934.png
          33 kB
          Siegfried Gumilar
        7. Observium - Dashboard 2019-05-09 15-30-56(1).png
          1.11 MB
          Mike Stupalov

        Activity

          [OBS-1945] Support for HWg-PWR device added

          Now fully added in r9873.

          landy Mike Stupalov added a comment - Now fully added in r9873.

          Oops I didn't notice the double arrows in the lower right corners. Thanks for the hint. I've just noticed that I can also reduce the widget to half the column width with it.
          It was always bothering me that there was so much blank space below the alerts.

          swfeldkirch Siegfried Gumilar added a comment - Oops I didn't notice the double arrows in the lower right corners. Thanks for the hint. I've just noticed that I can also reduce the widget to half the column width with it. It was always bothering me that there was so much blank space below the alerts.

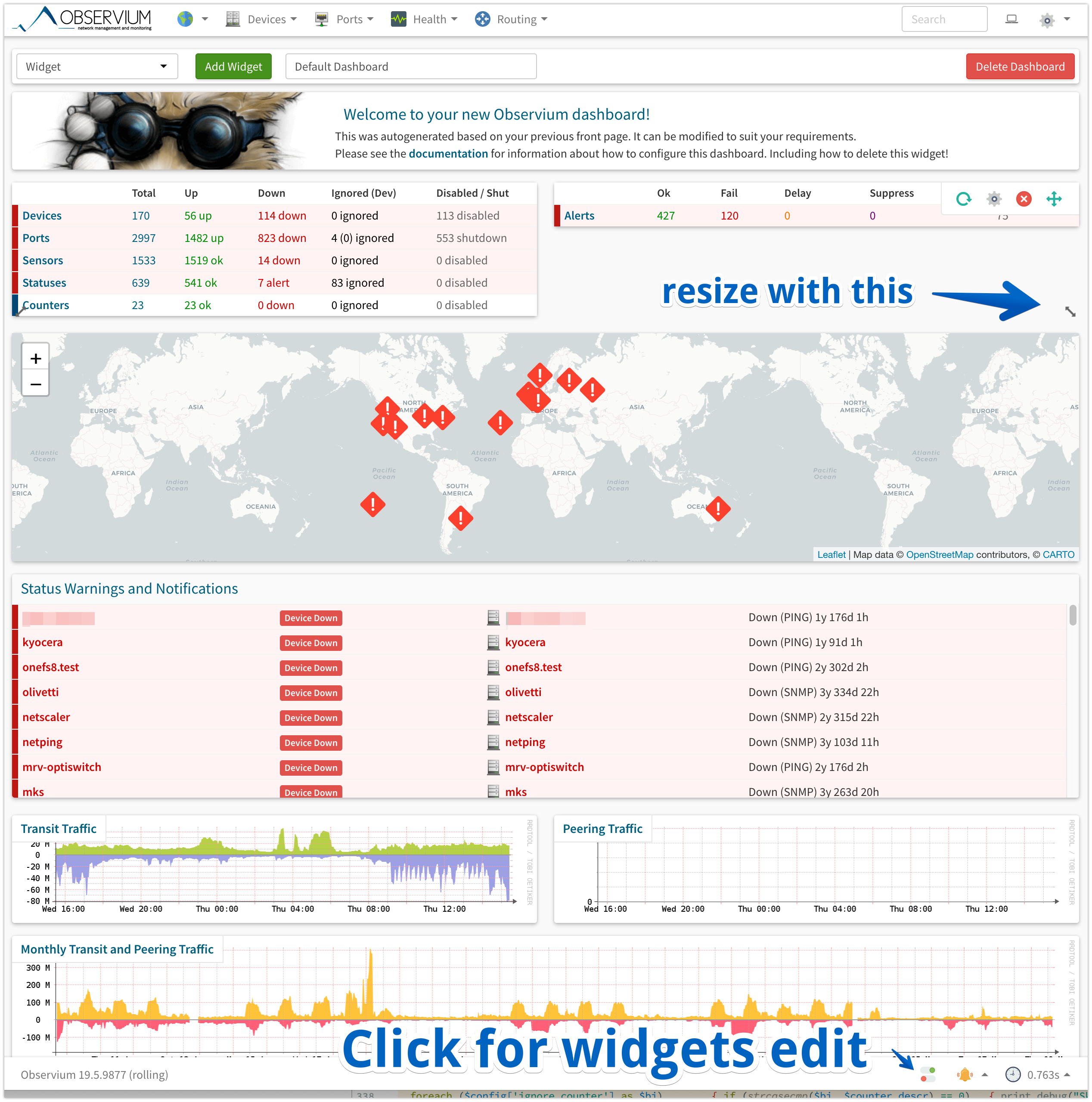

          Yes, added, but this widget height you need change manually, see screenshot:

          landy Mike Stupalov added a comment - Yes, added, but this widget height you need change manually, see screenshot:

          Hello Mike,

          I have just updated Observium and recognized that you added counters to observium. The work fine with our HWg-PWR devices. Thank you!

          But it seems like you need to adjust the height of the widget listing Devices, Ports, Sensors, Statuses and now Counters:

          The Counters are barely visible.

          swfeldkirch Siegfried Gumilar added a comment - Hello Mike, I have just updated Observium and recognized that you added counters to observium. The work fine with our HWg-PWR devices. Thank you! But it seems like you need to adjust the height of the widget listing Devices, Ports, Sensors, Statuses and now Counters: The Counters are barely visible.

          energy counters wip

          landy Mike Stupalov added a comment - energy counters wip

          it would be very much appreaciated if you could add support for the energy sensors again. I am in desperate need of these values. Sorry for digging up this old issue, but it is not really solved for me. Maybe I can fix the code by myself if you can tell me what is wrong with it...

          Thanks in advance.

          swfeldkirch Siegfried Gumilar added a comment - it would be very much appreaciated if you could add support for the energy sensors again. I am in desperate need of these values. Sorry for digging up this old issue, but it is not really solved for me. Maybe I can fix the code by myself if you can tell me what is wrong with it... Thanks in advance.

          Any news on the energy sensors? I have just switched to rolling and have lost all the energy graphs...

          swfeldkirch Siegfried Gumilar added a comment - Any news on the energy sensors? I have just switched to rolling and have lost all the energy graphs...

          Energy sensor currently removed, but will added later (after code refactor).

          landy Mike Stupalov added a comment - Energy sensor currently removed, but will added later (after code refactor).

          Added sensors discovery in r8008.

          landy Mike Stupalov added a comment - Added sensors discovery in r8008.
