F5 SSL graph missing

Traffic count as zero is a known issue on F5, as I recall.

You can ignore the stuff in MIB properties.

Update:

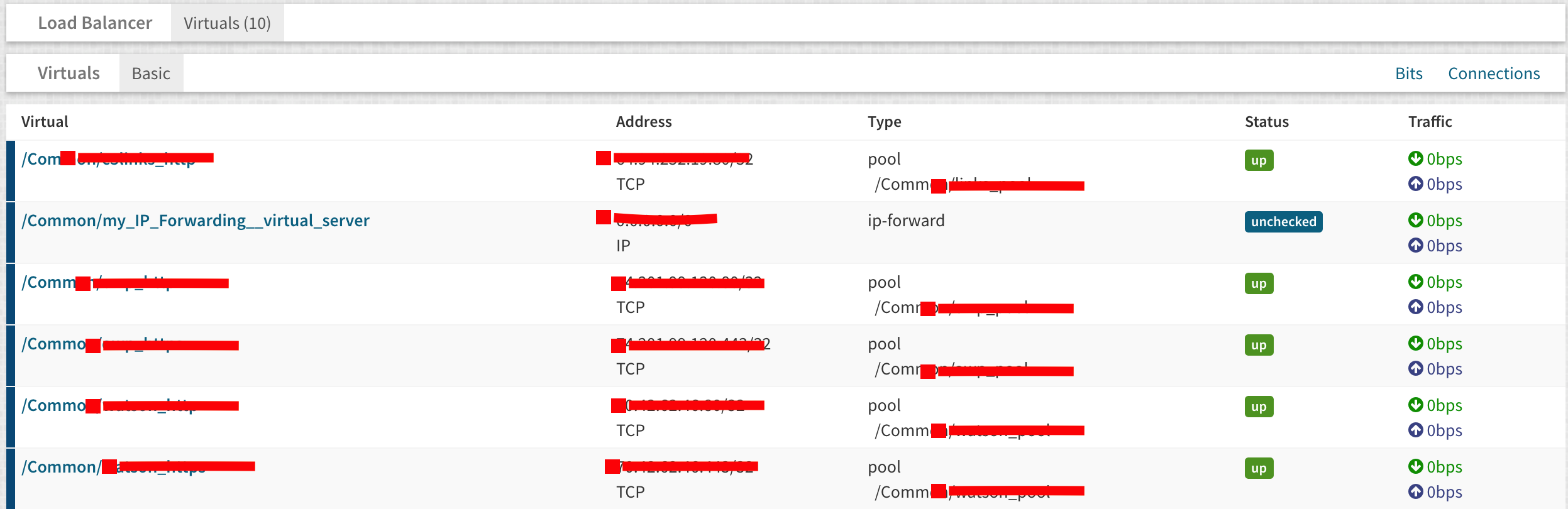

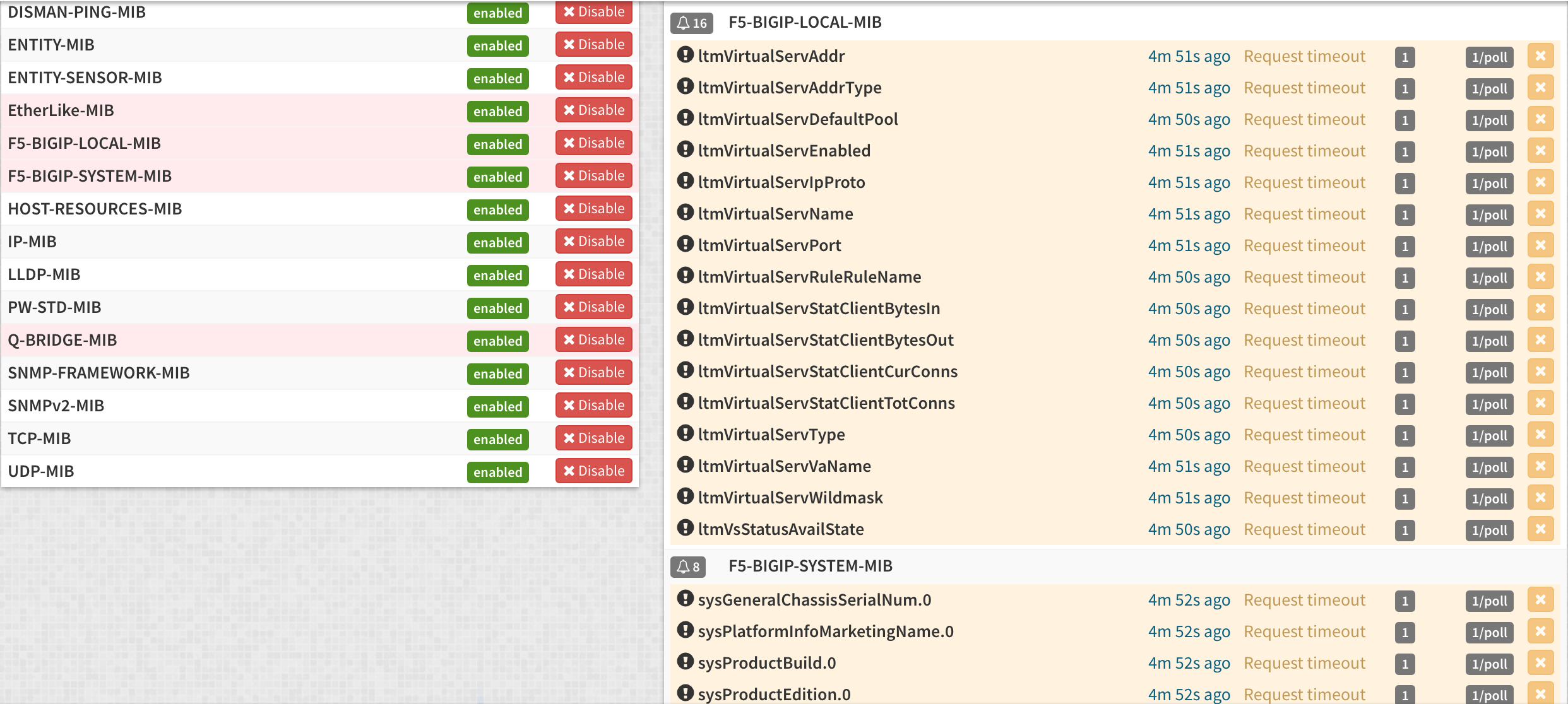

@Adam: now its showing SSL graph and VIPs but strange still i am seeing MIBs error in Device Properties > MIBs saying "timeout" which i sent you screenshot before. Now i am seeing VIP but its bits/traffic counter is zero.

There is no device called "lb5a.example.com" known to your observium install (and marked as up)

Update:

If i run following command from observium i can see all VIPs server of F5

[root@olab5g f5]# snmpwalk -v1 -m /var/observium/mibs/f5/F5-BIGIP-LOCAL-MIB -c public lb5a.example.com ltmVirtualServAddr
F5-BIGIP-LOCAL-MIB::ltmVirtualServAddr."/Common/vip1_http" = Hex-STRING: 40 5E FD A5
F5-BIGIP-LOCAL-MIB::ltmVirtualServAddr."/Common/vip2_http" = Hex-STRING: 46 2A 3E 98
F5-BIGIP-LOCAL-MIB::ltmVirtualServAddr."/Common/vip3_http" = Hex-STRING: 46 2A 3E C6
F5-BIGIP-LOCAL-MIB::ltmVirtualServAddr."/Common/vip4_http" = Hex-STRING: 40 5E FD 06
F5-BIGIP-LOCAL-MIB::ltmVirtualServAddr."/Common/dcp_http" = Hex-STRING: 46 2A 3E 96

Here is the output:

[root@olab5g f5]# /var/observium/poller.php -h lb5a.example.com -m loadbalancer -d -r
DEBUG!

SQL[SELECT `attrib_value` FROM `observium_attribs` WHERE `attrib_type` = 'dbSchema';]
SQL RUNTIME[0.00026202s]

SQL[SELECT @@SESSION.sql_mode;]
SQL RUNTIME[0.00006294s]

SQL[SELECT `attrib_value` FROM `observium_attribs` WHERE `attrib_type` = 'current_rev';]
SQL RUNTIME[0.00008512s]

SQL[SELECT * FROM `config`]
SQL RUNTIME[0.00010705s]

___ _ _
/ _ \ | |__ ___ ___ _ __ __ _() _ _ _ __ ___

__/ |._/ |_/ _||| _/ || _,||| || ||
Observium Professional 0.16.5.7901
http://www.observium.org

SQL[SELECT `attrib_value` FROM `observium_attribs` WHERE `attrib_type` = 'latest_ver';]
SQL RUNTIME[0.00009704s]

SQL[SELECT `attrib_value` FROM `observium_attribs` WHERE `attrib_type` = 'latest_rev';]
SQL RUNTIME[0.00008321s]

SQL[SELECT `attrib_value` FROM `observium_attribs` WHERE `attrib_type` = 'latest_rev_date';]
SQL RUNTIME[0.00007987s]

CMD[/var/observium/scripts/distro]

CMD EXITCODE[0]
CMD RUNTIME[0.0367s]
STDOUT[
Linux|2.6.32-431.20.3.el6.x86_64|amd64|CentOS|6.5
]

CMD[/usr/bin/env python --version 2>&1]

CMD EXITCODE[0]
CMD RUNTIME[0.0048s]
STDOUT[
Python 2.6.6
]

SQL[SELECT version();]
SQL RUNTIME[0.00018406s]

CMD[/usr/bin/snmpget --version 2>&1]

CMD EXITCODE[0]
CMD RUNTIME[0.0046s]
STDOUT[
NET-SNMP version: 5.5
]

CMD[/usr/bin/rrdtool --version |head -n1]

CMD EXITCODE[0]
CMD RUNTIME[0.0053s]
STDOUT[
RRDtool 1.3.8 Copyright 1997-2009 by Tobias Oetiker <tobi@oetiker.ch>
]

CMD[date "+%:z"]

CMD EXITCODE[0]
CMD RUNTIME[0.0039s]
STDOUT[
-04:00
]

SQL[SELECT TIMEDIFF(NOW(), UTC_TIMESTAMP);]
SQL RUNTIME[0.00018501s]

CMD[/usr/bin/env apache2 -v | awk '/Server version:/

']

CMD EXITCODE[0]
CMD RUNTIME[0.0169s]
STDOUT[
Apache/2.2.15
]

SQL[SELECT @@SESSION.sql_mode;]
SQL RUNTIME[0.00021291s]

SQL[SHOW VARIABLES LIKE 'character_set_connection']
SQL RUNTIME[0.00043106s]

1. 1. 1. 1. 1. Software versions #####

o OS Linux 2.6.32-431.20.3.el6.x86_64 [amd64] (CentOS 6.5)
o Apache 2.2.15
o PHP 5.6.21 (OPcache: DISABLED)
o Python 2.6.6
o MySQL 5.1.73 (extension: mysqli 5.1.73)
o SNMP NET-SNMP 5.5
o RRDtool 1.3.8

1. 1. 1. 1. 1. MySQL mode #####

o MySQL

1. 1. 1. 1. 1. Charset info #####

o PHP UTF-8
o MySQL utf8

1. 1. 1. 1. 1. Timezones info #####

o Date Wednesday, 01-Jun-16 18:45:56 UTC
o PHP +00:00
o MySQL -04:00

SQL[SELECT * FROM `alerts_maint` WHERE `maint_start` < '1464806756' AND `maint_end` > '1464806756']
SQL RUNTIME[0.00025988s]

1. 1. 1. 1. 1. Starting polling run at 2016-06-01 18:45:56 #####

SQL[SELECT `device_id` FROM `devices` WHERE `disabled` = 0 AND `hostname` LIKE 'lb5a.example.com' ORDER BY `device_id` ASC]
SQL RUNTIME[0.00029588s]
WARNING: 0 devices polled. Did you specify a device that does not exist?
/var/observium/poller.php: lb5a.example.com - 0 devices polled in 0.113 secs

1. 1. 1. 1. 1. Completed polling run at 2016-06-01 18:45:56 #####

NOTE, $config['snmp']['hide_auth'] is set to TRUE, snmp community and snmp v3 auth hidden from debug output.
o Devices Polled 0
o Poller Time 0.113 secs
o Memory usage 8.5MB (peak: 8.5MB)
o MySQL Usage Cell[4/0.002s] Row[5/0.003s] Rows[4/0.003s] Column[0/0s] Update[0/0s] Insert[0/0s] Delete[0/0s]
o RRDTool Usage

Then why is your device refusing to respond to requests remotely?

You can get some debugging data with :

./poller.php -h <host> -m loadbalancer -d -r

If i run this command on F5 device i am seeing following:

[root@f5a:Active:In Sync] ~ # snmpwalk -c public localhost ltmVirtualServAddr
F5-BIGIP-LOCAL-MIB::ltmVirtualServAddr."/Common/vip1_http" = Hex-STRING: 4A C9 63 78
F5-BIGIP-LOCAL-MIB::ltmVirtualServAddr."/Common/vip1_https" = Hex-STRING: 4A C9 63 78
F5-BIGIP-LOCAL-MIB::ltmVirtualServAddr."/Common/vip2_http" = Hex-STRING: 40 5E FD B1
F5-BIGIP-LOCAL-MIB::ltmVirtualServAddr."/Common/vip2_https" = Hex-STRING: 40 5E FD B1
F5-BIGIP-LOCAL-MIB::ltmVirtualServAddr."/Common/vip3_http" = STRING: "F*>."
F5-BIGIP-LOCAL-MIB::ltmVirtualServAddr."/Common/vip3_http" = Hex-STRING: 40 5E FC 13
F5-BIGIP-LOCAL-MIB::ltmVirtualServAddr."/Common/my_IP_Forwarding__virtual_server" = Hex-STRING: 00 00 00 00

MIBs don't do what you think they do. These errors are caused by your device not returning data for the requested OIDs.

Update:

I have added latest F5 device running 11.6.0 version. It is showing correct device type but look like many missing MIBs. In your base observium you have mibs version 11.5.0, I believe it need 11.6.0 see following screenshot.

Crap!! My bad

Whatever F5 i am testing with it has bug (version 11.6.0). - Showing Device type: Linux

I tried other F5 which is running version (11.6.0 with latest Hotfix). - Showing Device type: F5

Let me add this device in Observium and pull graphs. I will update you as soon as i see SSL and other F5 stats
