CBQoS graphing on ASR920

Details

    Description

      Having problems with CBQoS on interfaces and service-instances on Cisco ASR920 due to graph drawing error. Have a look at the attached files, could the "64" be the problem here?

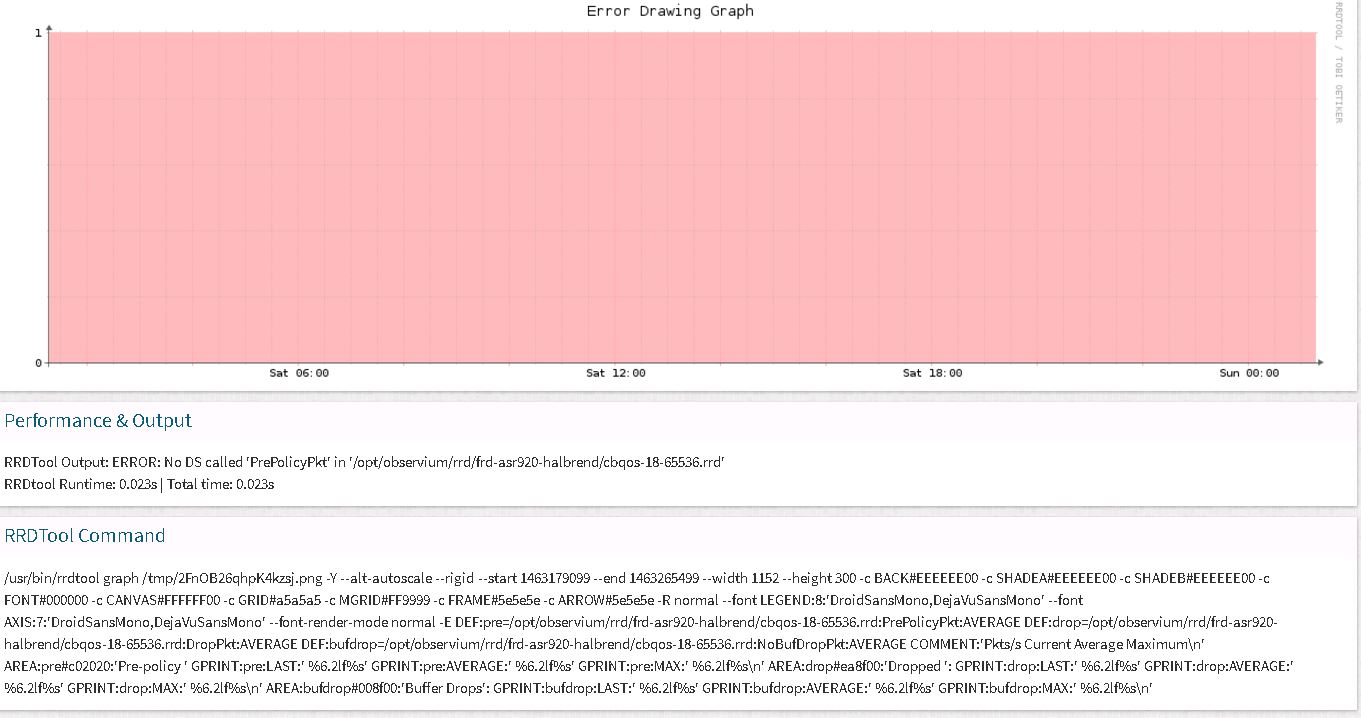

      Image 1 - "No DS called 'PrePolicyPkt'.
      Image 2 - Looking into the RRD file the 'PrePolicyPkt' is called 'PrePolicyPkt64'.
      Image 3 - Running Discovery - Its called 'PrePolicyPkt64' here aswell
      Image 4 - Running Polling

      If I can provide with more information please let me know.
