CBQoS graphing on ASR920

Details

    Description

      Having problems with CBQoS on interfaces and service-instances on Cisco ASR920 due to graph drawing error. Have a look at the attached files, could the "64" be the problem here?

      Image 1 - "No DS called 'PrePolicyPkt'.

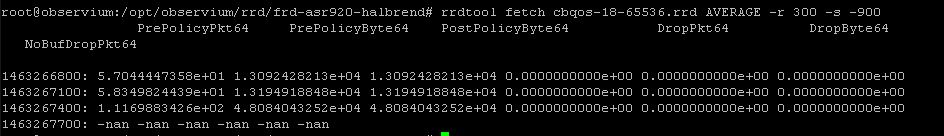

      Image 2 - Looking into the RRD file the 'PrePolicyPkt' is called 'PrePolicyPkt64'.

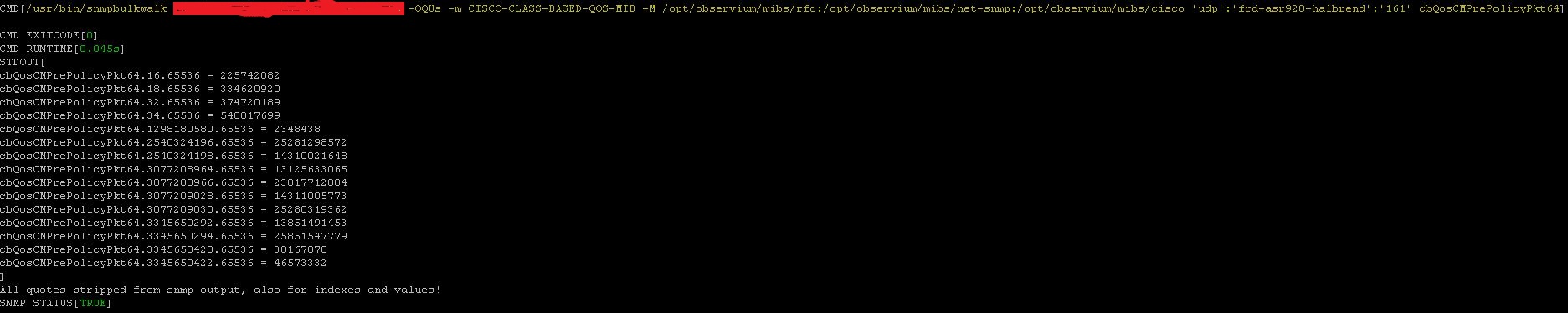

      Image 3 - Running Discovery - Its called 'PrePolicyPkt64' here aswell

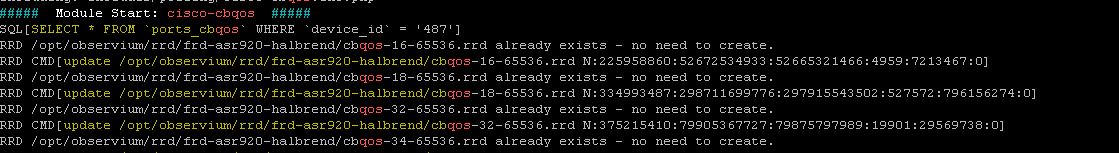

      Image 4 - Running Polling

      If I can provide with more information please let me know.

      Attachments

        1. CBQoS ASR920 (1).JPG
          CBQoS ASR920 (1).JPG
          130 kB
        2. CBQoS ASR920 (2).JPG
          CBQoS ASR920 (2).JPG
          31 kB
        3. CBQoS ASR920 (3).JPG
          CBQoS ASR920 (3).JPG
          118 kB
        4. CBQoS ASR920 (4).JPG
          CBQoS ASR920 (4).JPG
          64 kB

        Issue Links

          relates to

          Bug - A problem which impairs or prevents the functions of the product. OBS-1864 CBQoS graphing on devices

          • Minor - Minor loss of function, or other problem where easy workaround is present.
          • Closed

          Activity

            [OBS-1837] CBQoS graphing on ASR920
            landy Mike Stupalov made changes -
            Status Original: Resolved [ 5 ] New: Closed [ 6 ]
            Enivest Thomas Mowatt made changes -
            Link New: This issue relates to OBSERVIUM-1864 [ OBSERVIUM-1864 ]
            Enivest Thomas Mowatt added a comment -

            ./discovery.php -u - Done it many times. Still have the same problem on several devices.
            RRDTool calling for 'PrePolicyPkt' but in the .rrd file and polling its called 'PrePolicyPkt64'.

            Enivest Thomas Mowatt added a comment - ./discovery.php -u - Done it many times. Still have the same problem on several devices. RRDTool calling for 'PrePolicyPkt' but in the .rrd file and polling its called 'PrePolicyPkt64'.
            landy Mike Stupalov made changes -
            Workflow Original: classic default workflow [ 12942 ] New: Observium workflow [ 13364 ]
            landy Mike Stupalov added a comment -

            ./discovery.php -u update one-time all wrong rrd files. If you delete/re-add, than script do not update rrds.

            landy Mike Stupalov added a comment - ./discovery.php -u update one-time all wrong rrd files. If you delete/re-add, than script do not update rrds.
            Enivest Thomas Mowatt added a comment -

            Worked on the device I debugged, then tried on the a second device and it failed. Same error.

            First I tried to delete the device in Observium GUI and add it again, did not work. (RRD folder for that device did not get removed (I crossed the check box).

            Then I tried to delete the device in Observium GUI and remove the RRD folder for that device, noticed it did not disappear the first time. Added the device again and then it worked.

            I don't want to delete the RRD files for every device I want CBQoS on, is there a work-around?

            Enivest Thomas Mowatt added a comment - Worked on the device I debugged, then tried on the a second device and it failed. Same error. First I tried to delete the device in Observium GUI and add it again, did not work. (RRD folder for that device did not get removed (I crossed the check box). Then I tried to delete the device in Observium GUI and remove the RRD folder for that device, noticed it did not disappear the first time. Added the device again and then it worked. I don't want to delete the RRD files for every device I want CBQoS on, is there a work-around?
            landy Mike Stupalov made changes -
            Resolution New: Fixed [ 1 ]
            Status Original: Open [ 1 ] New: Resolved [ 5 ]
            landy Mike Stupalov added a comment -

            Should be fixed since r7865.

            run ./discovery.php -u

            landy Mike Stupalov added a comment - Should be fixed since r7865. run ./discovery.php -u
            Enivest Thomas Mowatt made changes -
            Attachment New: CBQoS ASR920 (4).JPG [ 13170 ]
            Enivest Thomas Mowatt made changes -
            Attachment New: CBQoS ASR920 (3).JPG [ 13169 ]
            Enivest Thomas Mowatt made changes -
            Attachment New: CBQoS ASR920 (2).JPG [ 13168 ]
