Details
Description
I have a brocade module in IBM BladeCenter H.
(Brocade 8Gb SAN Switch Module for IBM eServer BladeCenter)
device is discovered like "generic" because there is only one sysObjectID in includes/definitions/os.inc.php
$config['os'][$os]['sysObjectID'][] = ".1.3.6.1.4.1.1588.2.1.1";
|
But in our Brocade's modules the sysObjectID is .1.3.6.1.4.1.1588.2.1.3
Some more info about Brocade module:
Brocade-1-2:admin> version
|
Kernel: 2.6.14.2
|
Fabric OS: v6.3.2b
|
Made on: Wed Nov 10 23:55:09 2010
|
Flash: Wed Jan 26 14:35:06 2011
|
BootProm: 1.0.9
|
|
|
Brocade-1-2:admin> snmpmibcapshow
|
Warning: This command is being deprecated. Please use snmpConfig
|
SW-MIB: NO
|
FA-MIB: YES
|
HA-MIB: YES
|
FCIP-MIB: NO
|
ISCSI-MIB: NO
|
FA-TRAP: YES
|
connUnitStatusChange: YES
|
connUnitEventTrap: YES
|
connUnitSensorStatusChange: YES
|
connUnitPortStatusChange: YES
|
SW-EXTTRAP: NO
|
HA-TRAP: YES
|
fruStatusChanged: YES
|
cpStatusChanged: YES
|
fruHistoryTrap: YES
|
|
|
|
I add my sysObjectID to includes/definitions/os.inc.php and Observium can discover device's Hardware as "brocade8Gb" and serial.
But there is only ethernet interfaces
Attachments
Issue Links
- relates to
-
OBS-1042 Monitor Fiberchannel Name Service on FABOS
-
- Open
-
-
-
- In Review
-
-
OBS-855 Better Graphing for Brocade FC Traffic
-
- Open
-
-
-
- Closed
-
-
-
- Closed
-
Activity
Strange device.

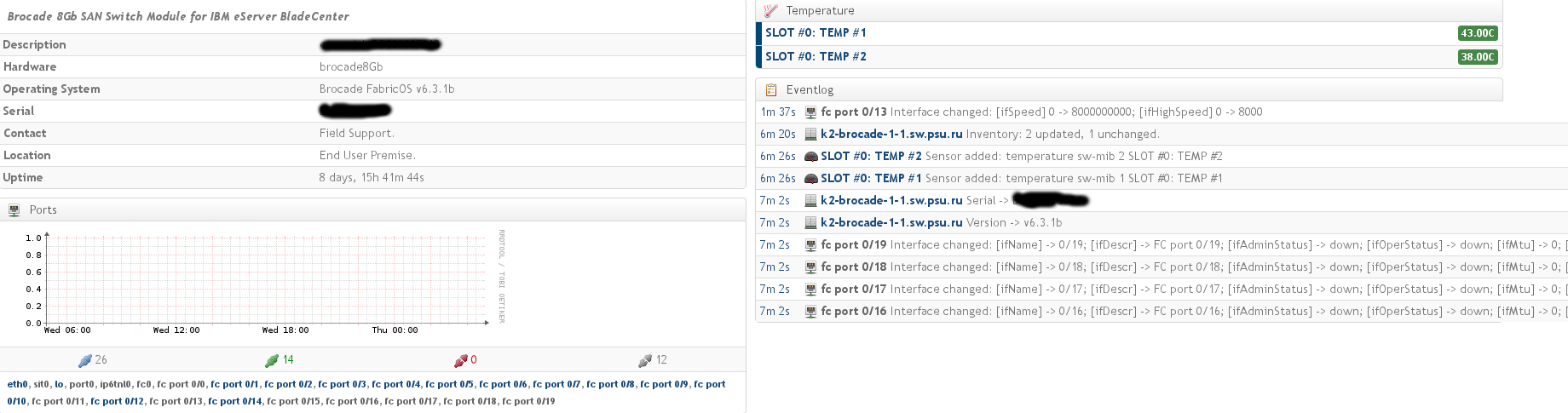

Check one brocade module with firmware v6.3.1b
sysObjectID is .1.3.6.1.4.1.1588.2.1.1.73
and Observium CE can detect 2 temperature sensors and all ports.

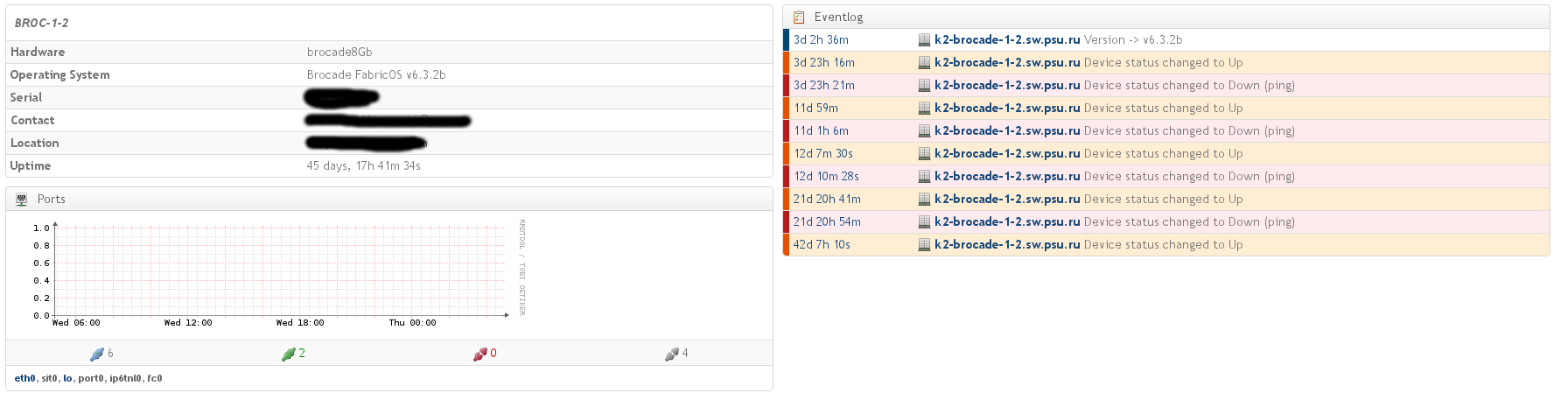

On fw v6.3.2b no fc ports deteced
Work version polling
$ cat includes/polling/os/fabos.inc.php
|
<?php
|
|
|
/**
|
* Observium
|
*
|
* This file is part of Observium.
|
*
|
* @package observium
|
* @subpackage poller
|
* @copyright (C) 2006-2015 Adam Armstrong
|
*
|
*/
|
#
|
$version = trim(snmp_get($device, 'swFirmwareVersion.0', '-Ovq', 'SW-MIB', mib_dirs('brocade')),'"');
|
$hardware = trim(snmp_get($device, 'entPhysicalDescr.1', '-Ovq', 'ENTITY-MIB', mib_dirs()),'"');
|
$serial = trim(snmp_get($device, 'entPhysicalSerialNum.1', '-Ovq', 'ENTITY-MIB', mib_dirs()),'"');
|
|
|
if ($version == "")
|
{
|
$version = trim(snmp_get($device, 'SNMPv2-SMI::experimental.94.1.7.1.3.16.0.0.5.51.61.220.34.0.0.0.0.0.0.0.0.2', '-Ovq', 'ENTITY-MIB', mib_dirs()),'"');
|
}
|
// EOF
|
And OID for some sensors:
mtivi@mmon-o-0:~$ snmpwalk -On -c QaZXsW -v2c 10.10.10.14 SNMPv2-SMI::experimental.94.1.8
|
.1.3.6.1.3.94.1.8.1.1.16.0.0.5.51.61.220.34.0.0.0.0.0.0.0.0.1 = Hex-STRING: 10 00 00 05 33 3D DC 22 00 00 00 00 00 00 00 00
|
.1.3.6.1.3.94.1.8.1.1.16.0.0.5.51.61.220.34.0.0.0.0.0.0.0.0.2 = Hex-STRING: 10 00 00 05 33 3D DC 22 00 00 00 00 00 00 00 00
|
.1.3.6.1.3.94.1.8.1.2.16.0.0.5.51.61.220.34.0.0.0.0.0.0.0.0.1 = INTEGER: 1
|
.1.3.6.1.3.94.1.8.1.2.16.0.0.5.51.61.220.34.0.0.0.0.0.0.0.0.2 = INTEGER: 2
|
.1.3.6.1.3.94.1.8.1.3.16.0.0.5.51.61.220.34.0.0.0.0.0.0.0.0.1 = STRING: "SLOT #0: TEMP #1"
|
.1.3.6.1.3.94.1.8.1.3.16.0.0.5.51.61.220.34.0.0.0.0.0.0.0.0.2 = STRING: "SLOT #0: TEMP #2"
|
.1.3.6.1.3.94.1.8.1.4.16.0.0.5.51.61.220.34.0.0.0.0.0.0.0.0.1 = INTEGER: 3
|
.1.3.6.1.3.94.1.8.1.4.16.0.0.5.51.61.220.34.0.0.0.0.0.0.0.0.2 = INTEGER: 3
|
.1.3.6.1.3.94.1.8.1.5.16.0.0.5.51.61.220.34.0.0.0.0.0.0.0.0.1 = ""
|
.1.3.6.1.3.94.1.8.1.5.16.0.0.5.51.61.220.34.0.0.0.0.0.0.0.0.2 = ""
|
.1.3.6.1.3.94.1.8.1.6.16.0.0.5.51.61.220.34.0.0.0.0.0.0.0.0.1 = STRING: "sensor 1: type 3 is OK, value is 36"
|
.1.3.6.1.3.94.1.8.1.6.16.0.0.5.51.61.220.34.0.0.0.0.0.0.0.0.2 = STRING: "sensor 2: type 3 is OK, value is 37"
|
.1.3.6.1.3.94.1.8.1.7.16.0.0.5.51.61.220.34.0.0.0.0.0.0.0.0.1 = INTEGER: 8
|
.1.3.6.1.3.94.1.8.1.7.16.0.0.5.51.61.220.34.0.0.0.0.0.0.0.0.2 = INTEGER: 8
|
.1.3.6.1.3.94.1.8.1.8.16.0.0.5.51.61.220.34.0.0.0.0.0.0.0.0.1 = INTEGER: 3
|
.1.3.6.1.3.94.1.8.1.8.16.0.0.5.51.61.220.34.0.0.0.0.0.0.0.0.2 = INTEGER: 3
|
I find OID for version:
$ snmpwalk -On -c QaZXsW -v2c 10.10.10.14 SNMPv2-SMI::experimental.94.1.7.1
|
.1.3.6.1.3.94.1.7.1.1.16.0.0.5.51.61.220.34.0.0.0.0.0.0.0.0.1 = Hex-STRING: 10 00 00 05 33 3D DC 22 00 00 00 00 00 00 00 00
|
.1.3.6.1.3.94.1.7.1.1.16.0.0.5.51.61.220.34.0.0.0.0.0.0.0.0.2 = Hex-STRING: 10 00 00 05 33 3D DC 22 00 00 00 00 00 00 00 00
|
.1.3.6.1.3.94.1.7.1.2.16.0.0.5.51.61.220.34.0.0.0.0.0.0.0.0.1 = INTEGER: 1
|
.1.3.6.1.3.94.1.7.1.2.16.0.0.5.51.61.220.34.0.0.0.0.0.0.0.0.2 = INTEGER: 2
|
.1.3.6.1.3.94.1.7.1.3.16.0.0.5.51.61.220.34.0.0.0.0.0.0.0.0.1 = STRING: "73.6"
|
.1.3.6.1.3.94.1.7.1.3.16.0.0.5.51.61.220.34.0.0.0.0.0.0.0.0.2 = STRING: "v6.3.2b"
|
.1.3.6.1.3.94.1.7.1.4.16.0.0.5.51.61.220.34.0.0.0.0.0.0.0.0.1 = STRING: "Hardware version"
|
.1.3.6.1.3.94.1.7.1.4.16.0.0.5.51.61.220.34.0.0.0.0.0.0.0.0.2 = STRING: "FOS version"
|
These are vendor IF-MIB implementation problems, nothing to do with us.
