  1. Observium
  2. OBS-4713

Add PDU AVOCENT PM3000

Details

    • Add New Device / OS
    • Resolution: Fixed
    • Minor
    • None
    • None
    • Default
    • None

    Description

      Hello Team,

      I added my PDUs AVOCENT PM3000 to Observium and they are not seen as PDUs but juste Servers, so we don't have any consumption information about Inlet and Outlet electrical ports.

      Could you add this please ?

      Thank you


      Attachments

        1. debug_result_05.02.2024.txt
          130 kB
        2. debug_result_07.02.2024_2.txt
          183 kB
        3. debug_result_07.02.2024.txt
          32 kB
        4. debug_result.txt
          135 kB
        5. image-2024-01-05-12-46-15-249.png
          247 kB
        6. image-2024-01-31-10-46-34-252.png
          280 kB

        Activity

          [OBS-4713] Add PDU AVOCENT PM3000
          Yolf Yassine ATOUI added a comment -

          Hi Mike,

          I revert sql-config.inc.php and have more result on the debug discovery but still don't have metrics per outlet.
          you can find attached the new debug result file : debug_result_05.02.2024.txt




          Yolf Yassine ATOUI added a comment - Hi Mike, I revert sql-config.inc.php and have more result on the debug discovery but still don't have metrics per outlet. you can find attached the new debug result file : debug_result_05.02.2024.txt
          landy Mike Stupalov added a comment -

          You have (unknown) local changes in some observium main files. If you changed something by self we not support this changes.

          You can revert own changes and rediscovery again:

          svn revert /opt/observium/includes/observium.inc.php /opt/observium/includes/sql-config.inc.php

          landy Mike Stupalov added a comment - You have (unknown) local changes in some observium main files. If you changed something by self we not support this changes. You can revert own changes and rediscovery again: svn revert /opt/observium/includes/observium.inc.php /opt/observium/includes/sql-config.inc.php
          Yolf Yassine ATOUI added a comment - - edited

          Here the result of the command :
          $ svn status /opt/observium
          M       /opt/observium/html/includes/graphs/multi-sensor/graph.inc.php
          ?       /opt/observium/html/includes/navbar-custom.inc.php
          ?       /opt/observium/html/weathermap
          M       /opt/observium/includes/influx.inc.php
          M       /opt/observium/includes/observium.inc.php
          !     C /opt/observium/includes/sql-config.inc.php
                >   local file edit, incoming file delete or move upon update
          ?       /opt/observium/mibs/fortinet/myagent.snmpwalk
          ?       /opt/observium/mibs/net-snmp/myagent.snmpwalk
          ?       /opt/observium/myagent.snmpwalk
          ?       /opt/observium/scripts/myagent.snmpwalk
          ?       /opt/observium/scripts/pdu-pa2-1.6-a.snmpwalk
          Summary of conflicts:
            Tree conflicts: 1


          Yolf Yassine ATOUI added a comment - - edited Here the result of the command :  $ svn status /opt/observium M       /opt/observium/html/includes/graphs/multi-sensor/graph.inc.php ?       /opt/observium/html/includes/navbar-custom.inc.php ?       /opt/observium/html/weathermap M       /opt/observium/includes/influx.inc.php M       /opt/observium/includes/observium.inc.php !     C /opt/observium/includes/sql-config.inc.php       >   local file edit, incoming file delete or move upon update ?       /opt/observium/mibs/fortinet/myagent.snmpwalk ?       /opt/observium/mibs/net-snmp/myagent.snmpwalk ?       /opt/observium/myagent.snmpwalk ?       /opt/observium/scripts/myagent.snmpwalk ?       /opt/observium/scripts/pdu-pa2-1.6-a.snmpwalk Summary of conflicts:   Tree conflicts: 1
          landy Mike Stupalov added a comment -

          I tested also with your new snmpdump, all sensors discovered.
          But in your discovery debug, outlet sensor ignored.
          Seems as your local changes or something.. pls show status of observium dir:

          svn status /opt/observium

          landy Mike Stupalov added a comment - I tested also with your new snmpdump, all sensors discovered. But in your discovery debug, outlet sensor ignored. Seems as your local changes or something.. pls show status of observium dir: svn status /opt/observium
          Yolf Yassine ATOUI added a comment -

          Here the debug result on copy.debug_result.txt


          Yolf Yassine ATOUI added a comment - Here the debug result on copy. debug_result.txt
          landy Mike Stupalov added a comment -

          do not show me just screenshots.
          you need make discovery debug (as bot written early):

          ./discovery.php -d -h <device>

          support was added based on your snmpdump, for troubleshooting on device discovery need your debug.

          landy Mike Stupalov added a comment - do not show me just screenshots. you need make discovery debug (as bot written early): ./discovery.php -d -h <device> support was added based on your snmpdump, for troubleshooting on device discovery need your debug.
          Yolf Yassine ATOUI added a comment -

          Hello Mike,

          Not talking about Stable and Rolling version, I'm under v24.1.13288 (rolling) and have you latest updates on this topic.

          Just saying that the dev is not having on consideration the outlet consumptions as it is possible to do normally throught the MIB.

          Yolf Yassine ATOUI added a comment - Hello Mike, Not talking about Stable and Rolling version, I'm under v24.1.13288 (rolling) and have you latest updates on this topic. Just saying that the dev is not having on consideration the outlet consumptions as it is possible to do normally throught the MIB.
          landy Mike Stupalov added a comment -

          This changes not in stable branch,you need wait for stable update or switch to trunk temporary:
          https://docs.observium.org/updating/#switch-between-rolling-and-stable-trains

          landy Mike Stupalov added a comment - This changes not in stable branch,you need wait for stable update or switch to trunk temporary: https://docs.observium.org/updating/#switch-between-rolling-and-stable-trains
          Yolf Yassine ATOUI added a comment -

          Hello,

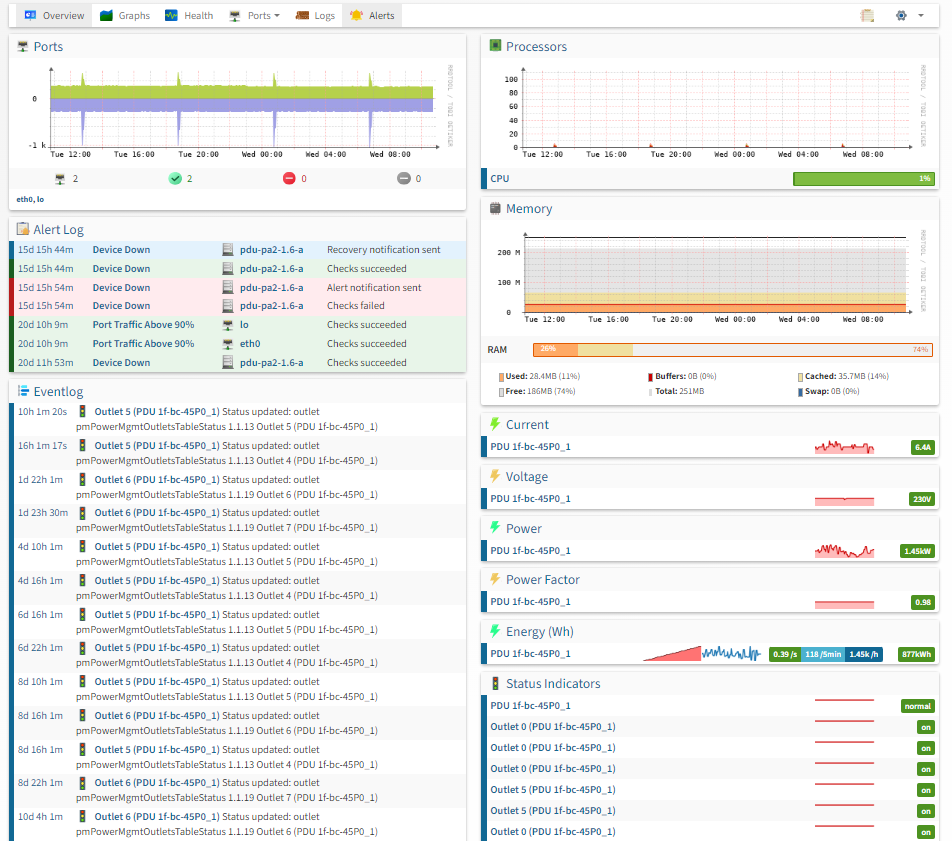

          Thank you for the add but I don't have the graphs of consumption by outlet as it is possible to see on the GUI.
          Could you add this part please ?
          I join the requested snmpdump



          Yolf Yassine ATOUI added a comment - Hello,  Thank you for the add but I don't have the graphs of consumption by outlet as it is possible to see on the GUI. Could you add this part please ? I join the requested snmpdump
          landy Mike Stupalov added a comment -

          Added in r13246.

          landy Mike Stupalov added a comment - Added in r13246.
          landy Mike Stupalov added a comment -

          Please make snmpdump as Bot requested (below).

          Or in latest Observium revisions we have script for make snmpdump as:

          /opt/observium/scripts/snmpdump.php -h <device>

          landy Mike Stupalov added a comment - Please make snmpdump as Bot requested (below). Or in latest Observium revisions we have script for make snmpdump as: /opt/observium/scripts/snmpdump.php -h <device>
