95th percentile calculation on traffic accounting

Details

    • Help
    • Resolution: Unresolved
    • Major
    • None
    • Enterprise Edition
    • Web Interface
    • None
    • Latest Observium monitoring a Juniper SRX550

    Description

      I've attached a screenshot of the traffic accounting page for one of our customers.  It's calculated off the interface which connects that customer to the WAN/Internet.

      I just wanted to verify that these numbers look correct.  I don't see a way to export data from the accounting page.  But I can export data from the regular graph from the device page.

      I'm not quite sure how to interpret the data I'm getting.  I would like to sort this based on the Mbps at each data point collected (I believe polled every minute for accounting) and try to do the 95th percentile in Excel just to confirm.

      Any help is much appreciated.  I'm also attaching the CSV in case anyone can explain the headers in that file.

      Attachments

        Activity

          [OBS-4057] 95th percentile calculation on traffic accounting
          jason@unitedlayer.com Jason Berenson added a comment -

          One last question just came up.  Would there be an easy way to have an alert in the billing section when the customer goes over X% of their commitment to send an alert?

          jason@unitedlayer.com Jason Berenson added a comment - One last question just came up.  Would there be an easy way to have an alert in the billing section when the customer goes over X% of their commitment to send an alert?
          landy Mike Stupalov made changes -
          Status Original: Pending Response [ 10000 ] New: In Review [ 10101 ]
          jason@unitedlayer.com Jason Berenson added a comment -

          Adam,

          The percentile graph looks awesome!  Thank you for that.  I also verified manually and everything looks accurate.  Much appreciated!

          Jason.

          jason@unitedlayer.com Jason Berenson added a comment - Adam, The percentile graph looks awesome!  Thank you for that.  I also verified manually and everything looks accurate.  Much appreciated! Jason.
          adama Adam Armstrong added a comment -

          Hi Jason,

          This should now be visible in the UI. It doesn't have the cross lines (i'm not entirely sure how to do that with the graphing library used for that graph), but it's easy enough to zoom in to the period and find the closest datapoint to 95th.

          adam.

          adama Adam Armstrong added a comment - Hi Jason, This should now be visible in the UI. It doesn't have the cross lines (i'm not entirely sure how to do that with the graphing library used for that graph), but it's easy enough to zoom in to the period and find the closest datapoint to 95th. adam.
          landy Mike Stupalov made changes -
          Status Original: In Review [ 10101 ] New: Pending Response [ 10000 ]
          adama Adam Armstrong added a comment -

          I'll see if i can work out how to generate a graph like that. I think it should be simple.

          adama Adam Armstrong added a comment - I'll see if i can work out how to generate a graph like that. I think it should be simple.
          jason@unitedlayer.com Jason Berenson added a comment -

          Thanks Adam.  I'll give this a try.  The customer is questioning the bandwidth usage which is why I would like to get the data points myself so I can draw the 95th in Excel and prove it out.

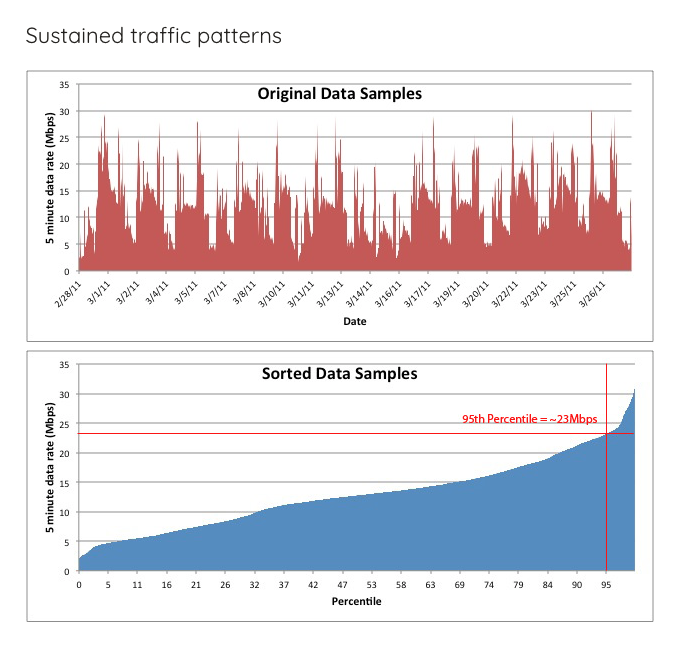

          A graph similar to the new screenshot I just attached showing the sorted samples and the 95th line to the right would be useful to prove it I think.

          jason@unitedlayer.com Jason Berenson added a comment - Thanks Adam.  I'll give this a try.  The customer is questioning the bandwidth usage which is why I would like to get the data points myself so I can draw the 95th in Excel and prove it out. A graph similar to the new screenshot I just attached showing the sorted samples and the 95th line to the right would be useful to prove it I think.
          landy Mike Stupalov made changes -
          Status Original: Pending Response [ 10000 ] New: In Review [ 10101 ]
          jason@unitedlayer.com Jason Berenson made changes -
          Attachment New: Screen Shot 2022-03-22 at 09.57.48.png [ 19674 ]
          landy Mike Stupalov made changes -
          Status Original: In Review [ 10101 ] New: Pending Response [ 10000 ]
